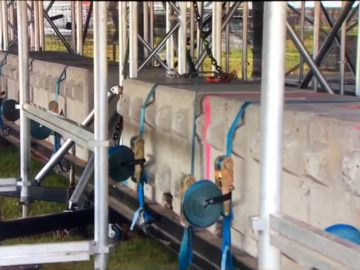

The Saddle Roofs are designed to be set up on single steel bases which can be connected with a compression beam which reduces the ballast requirements or can be set up with integrated bases (ballast safes) in any kind of steel scaffolding stage. The top canopy is tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

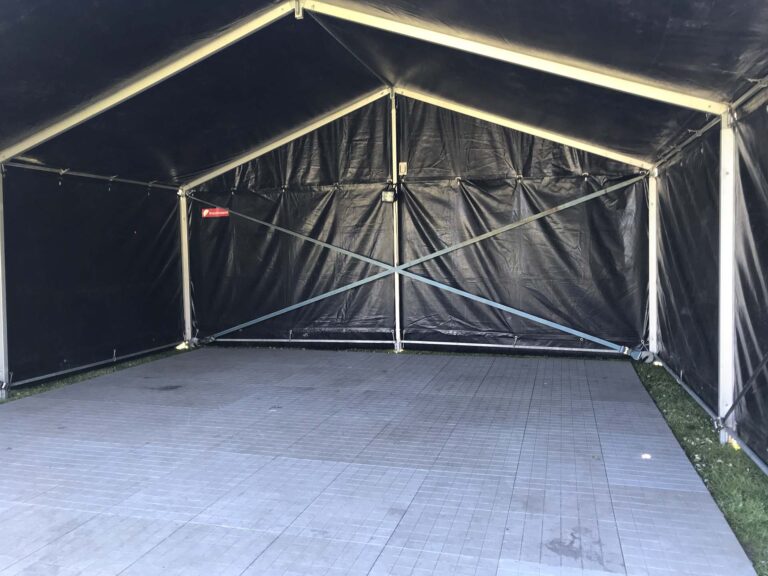

This roof meets all the required international standards and has been pre-calculated and comes with a full structural report and manual according the most recent regulations. Naturally PA Wings and Side Houses are available.

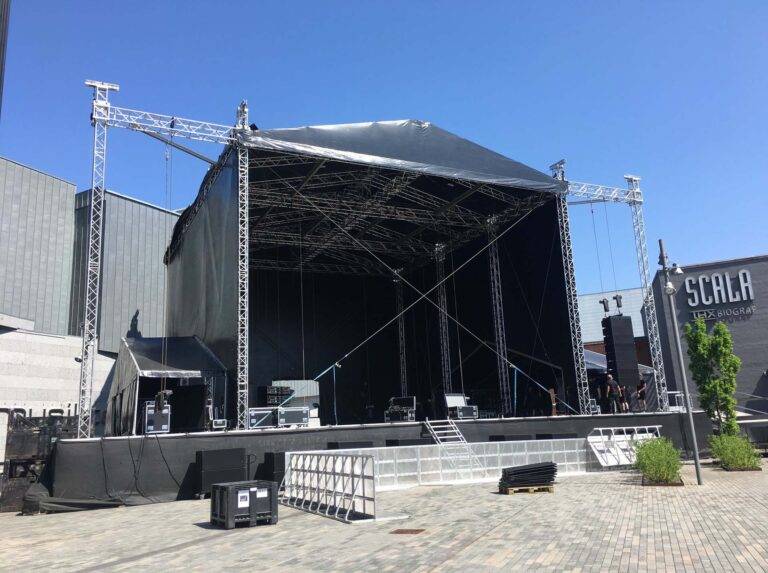

The SR40 Roof consist of a ST Ground Support on six TD35 Towers and a Roof Structure of ST Truss.

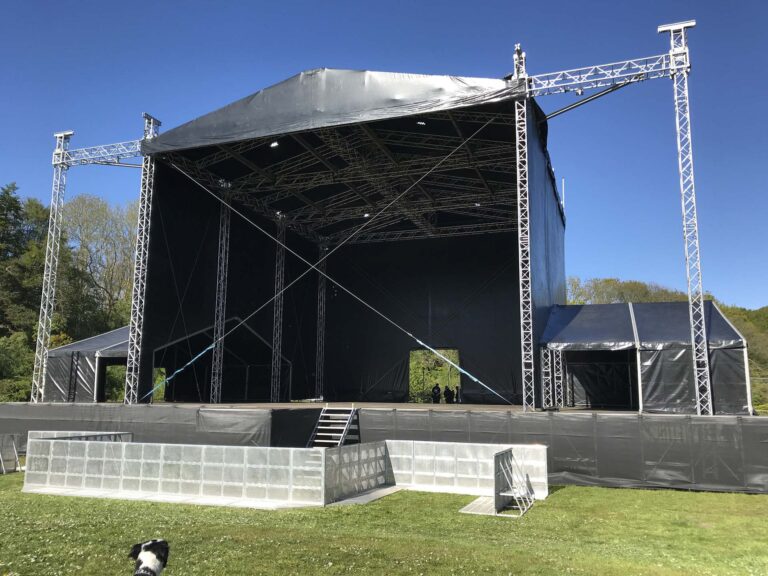

The SR40 Roof is a tower based structure with a saddle roof. These saddle roofs have a standard impressive load bearing ST Main Rig and the gable and have a fixed angle which enables you to re-build the roof in various dimensions. The standard SR40 ST Roofs are available in 20x14m, 18x14m, 16x12m and 14x12m all on six TD35 Towers. The 20x14m and 18x14m roofs have an additional center back tower to enhance the load bearing capacity and maintain the required clearance.
