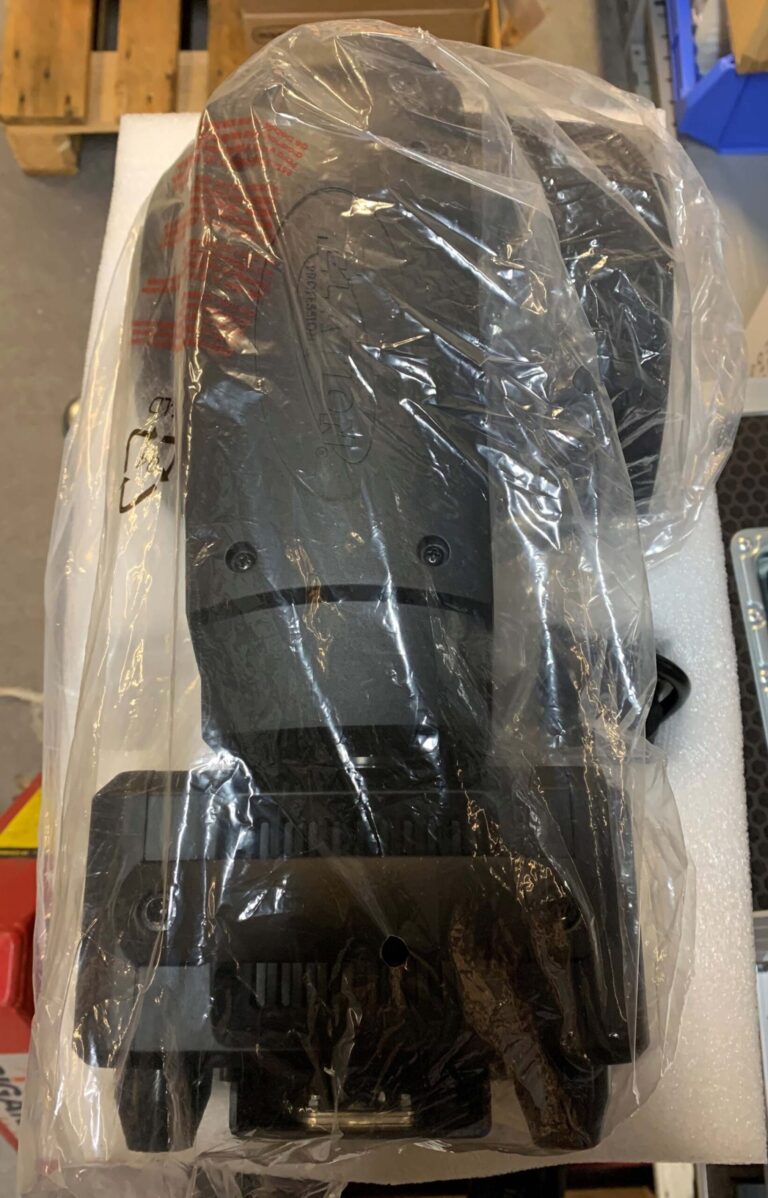

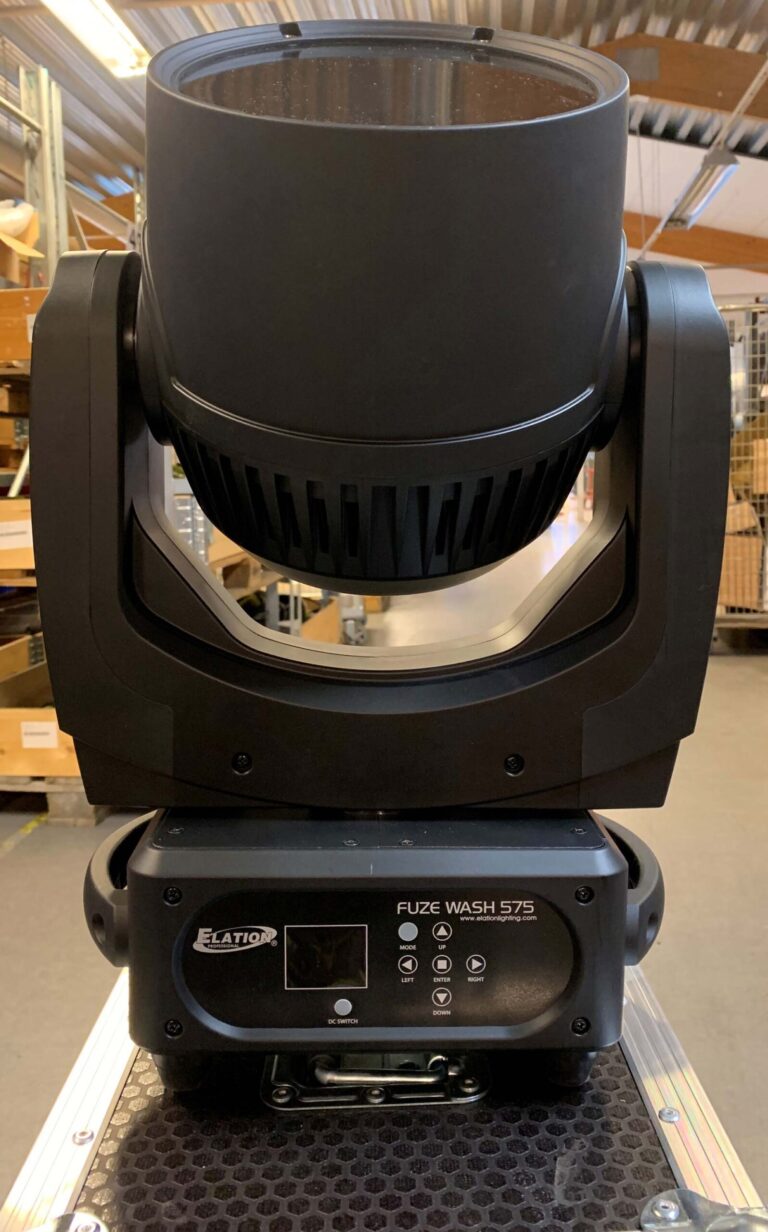

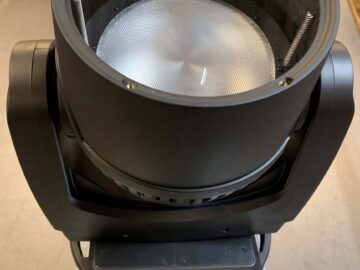

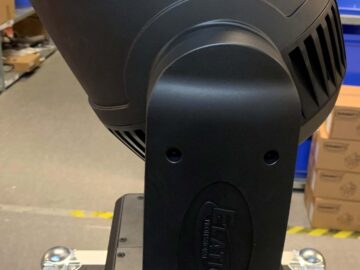

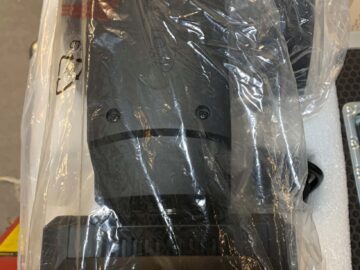

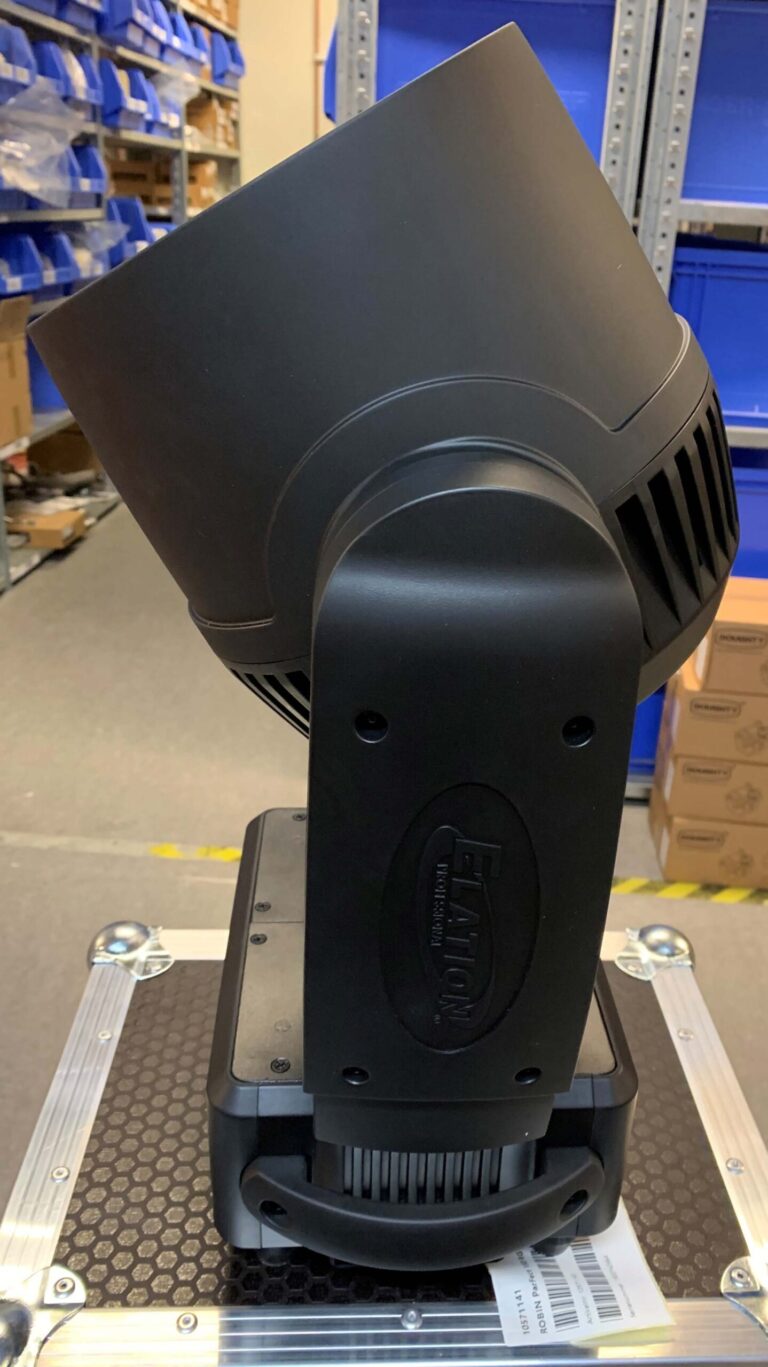

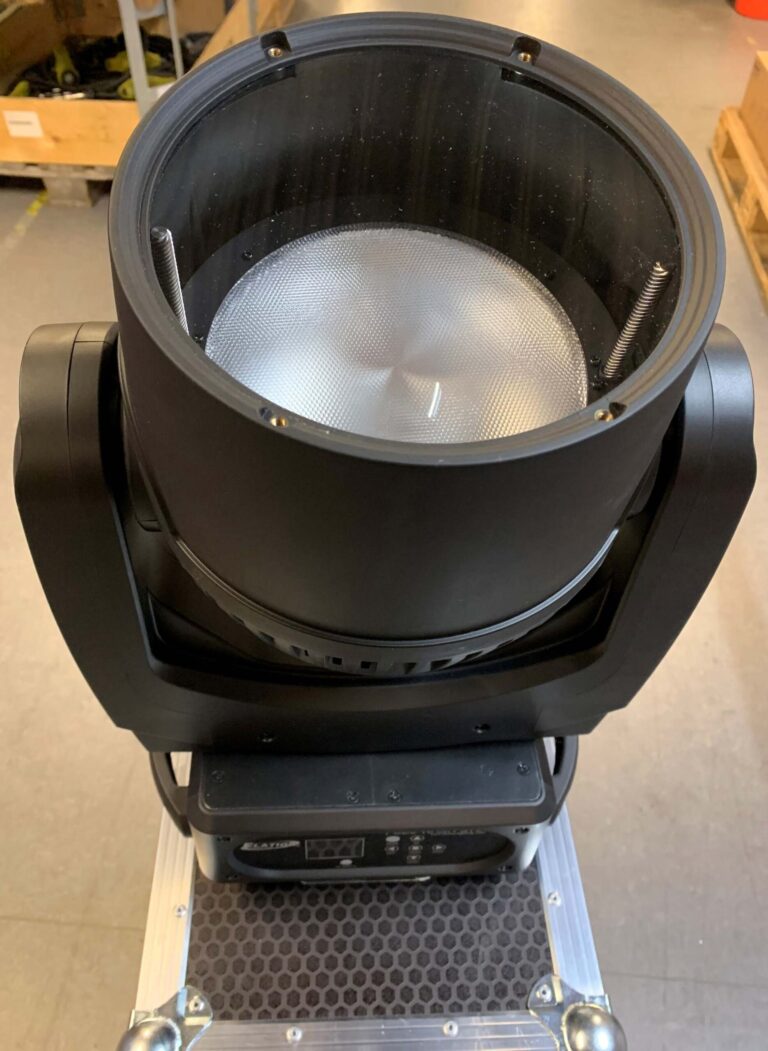

Elation Fuze Wash 575 Demo Fixtures

The FUZE WASH 575™ is a single source par moving head luminaire with a high output 350W Cool White / Daylight 6,800K 95CRI COB LED engine, 11° to 40° motorized zoom, smooth 16-bit pan and tilt movement, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, 5pin DMX and powerCON TRUE1 in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (100-240v).

Features

Cool White / Daylight Single Source Par Moving Head
High Output 95CRI 6,800K COB LED
11° to 40° Motorized Zoom
Smooth 16-Bit Pan and Tilt Movement
Variable Dimming Curve Modes
RDM (Remote Device Management)
Flicker Free Operation for TV and FILM
Multiple Unit Power Linking
Optional Snoot Lens

Specifications

SOURCE
350W 95CRI 6,800K Cool White / Daylight COB LED
50,000 Hour Average LED Life*
*LED life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
35,425 LUX 3,291 FC @6.6′ (2m) (11° Full On)
6,502 LUX 604 FC @6.6′ (2m) (40° Full On)

EFFECTS
11° – 40° Motorized Zoom
Electronic Strobe
Variable Dimming Curve Modes

COLOR
Cool White / Daylight

CONTROL / CONNECTIONS
2 DMX Channel Modes (11 Total Channels)
7 Button Control Panel and LCD Menu Display
Smooth 16-Bit Pan and Tilt Movement
RDM (Remote Device Management)
5pin DMX and powerCON TRUE1 In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 13.3” (337.7mm)
Width: 9.0” (228.8mm)
Vertical Height: 18.33” (465.7mm)
Weight: 27.0 lbs. (12.2kg)

ELECTRICAL / THERMAL
AC 100-240V – 50/60Hz
425W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

INCLUDED ITEMS
Omega Brackets
powerCON TRUE1 Power Cable

APPROVALS / RATINGS
CE | IP30
