Barco F90 W13 With EN68 Lens

Barco F90 W13 with EN 68 Ultra Short Throw lens

Price excl. VAT

 18 000

13,000 lumens, WUXGA, DLP laser phosphor projector

Enquire or make offer

Availability: 1

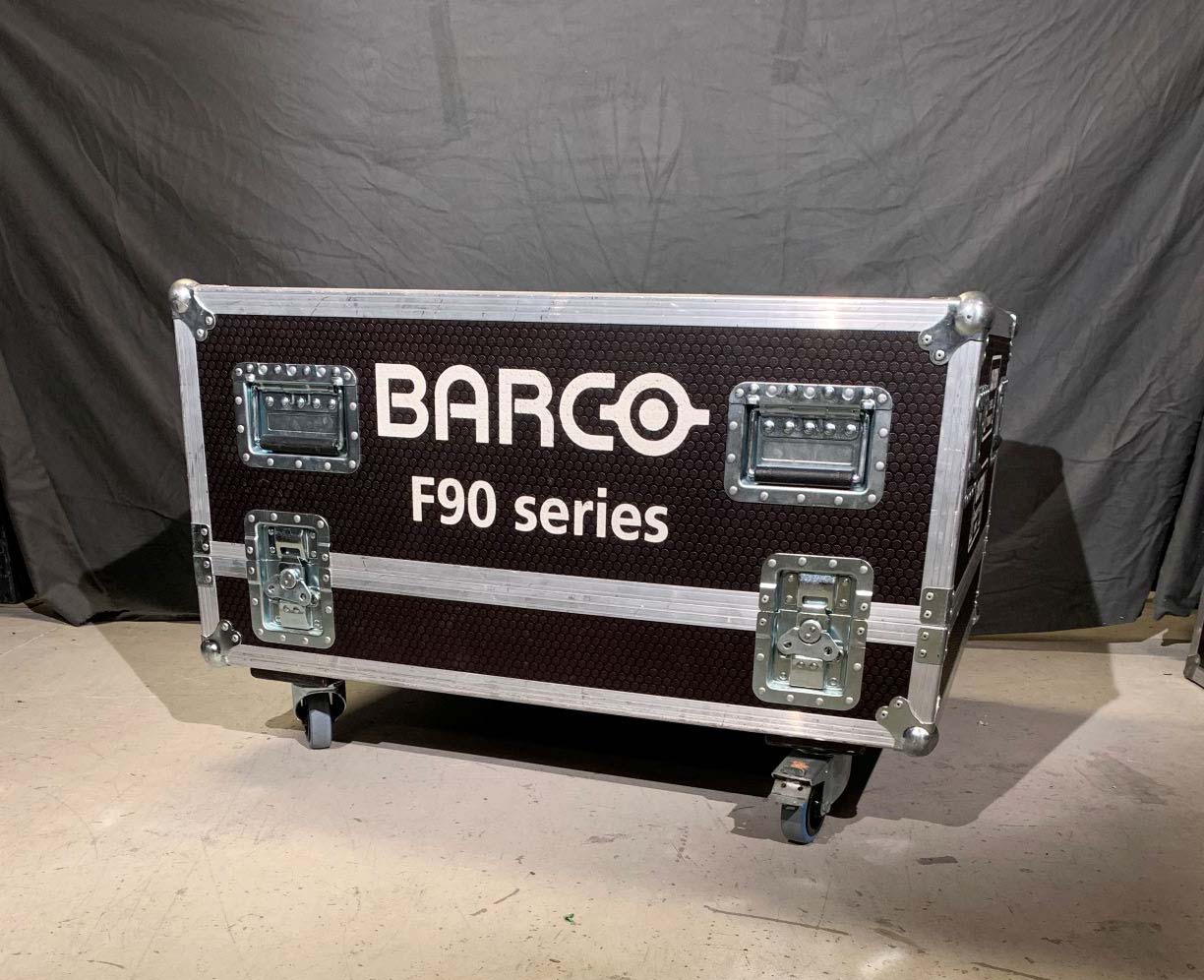

SKU: 10768 Category: Tags: , , , , Brand: BarcoMPN: F90 W13EAN: 7333293107686Condition: UsedCondition Description: Ex hire good working conditionYear mfg: 2017Warranty: 72 hoursPackaging: Flight caseLocation: Norway


13,000 lumens, WUXGA, DLP laser phosphor projector

Projector type Single chip DLP laser phosphor projector
Resolution 1,920 x 1,200 (WUXGA)
Brightness 13,000 center lumens
Contrast ratio 1,800:1 sequential
Brightness uniformity 90%
Aspect ratio 16:10
Lens type FLD+

Optical lens shift Vertical up to 134%, depending on lens
Horizontal up to 70%, depending on lens
Motorized zoom and focus (+ lens memory FLDX lenses)
Motorized lens shift (with position memory on all lenses)
Color correction P7 RealColor™
CLO (constant light output) Yes*
Light source Laser phosphor
Light source lifetime Up to 60,000 hours, depending on mode of operation
Sealed DLP™ core Yes
Orientation 360° rotation, no restrictions
3D Active stereoscopic 3D
Image processing Embedded warp & blend engine
Keystone correction Yes
Inputs HDSDI, 2x DP 1.2, 2x dual link DVI-D, HDBaseT, HDMI2.0 (HDCP2.2, HDR10), RJ 45 Ethernet, DMX in/out*, RS232 in, 2x USB, 12v out
Input resolutions Up to 2,560 x 1,600 @ 120Hz

refresh rates: 24Hz to 120Hz for WQXGA (2560×1600) and 24Hz to 60Hz for 4K/4KUHD (4096 x 2160/ 3860 x 2400)
Software tools Projector Toolset
Control IR, RS232, RJ45, XLR wired
Network connection 10/100 Ethernet, RJ45
Power requirements 100-240V / 50-60Hz
Power consumption 1500 W nominal, 2180 W maximum
BTU per hour 5100 BTU/h nominal, 7430 BTU/h maximum
Standby power <0.5W
Noise level (typical at 25°C/77°F) 38 dB(A)
Operating temperature 10 – 45 °C (sea level)
Storage temperature -20 to 60 °C
Operating humidity 20 – 80% RH
Storage humidity 10 – 90% RH
Dimensions (WxLxH) 575 x 730 x 295 mm / 22.64 x 28.74 x 11.61 in
Weight 44.5 kg / 98 lbs
