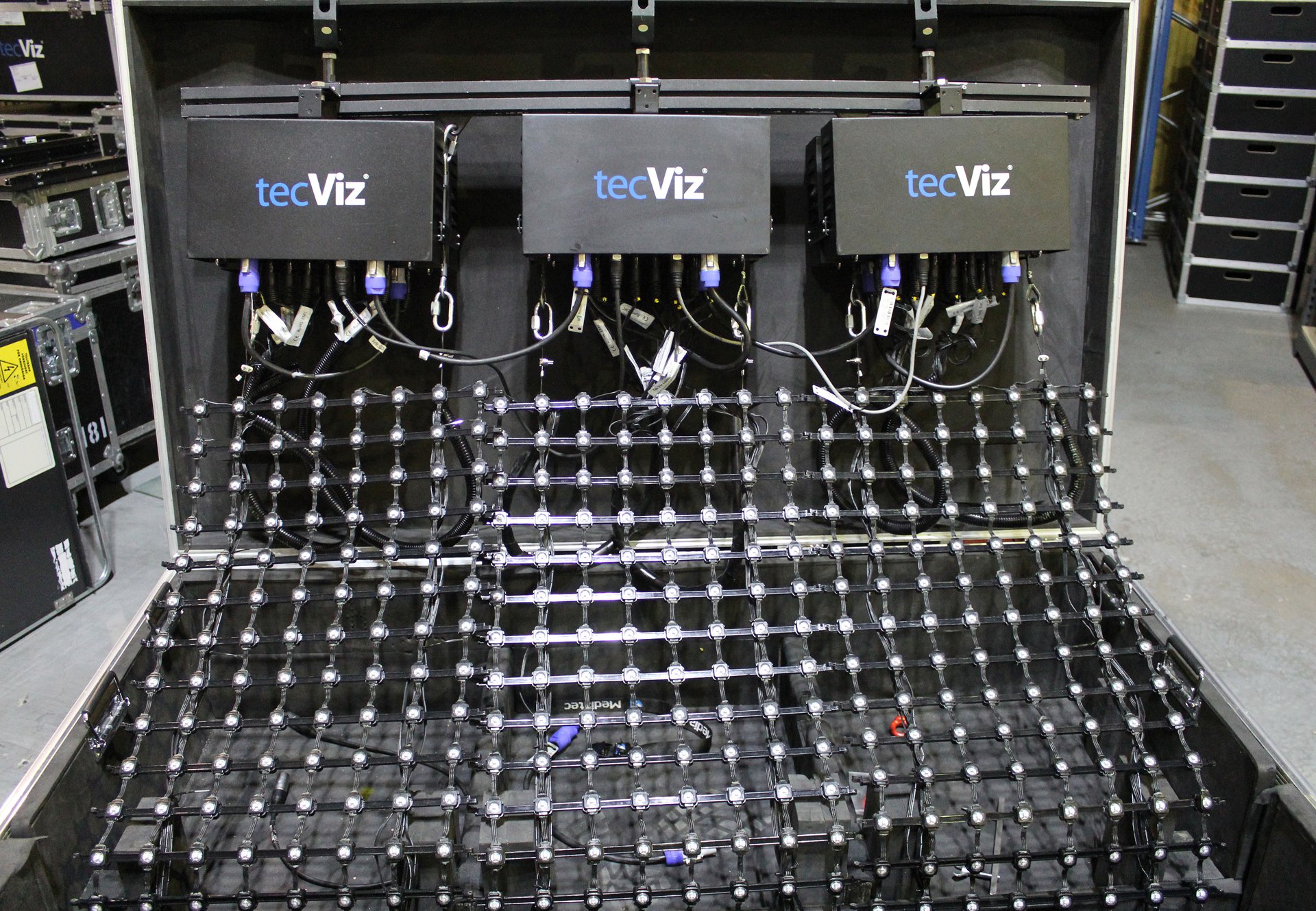

TecViz LEDNet M55 mesh screen package

– Flexible, Can be rolled or curved.
– Can be used for indoor and outdoor events.
– Extremely lightweight
– Bigger screens with less rigging.
– Allows more creative use of LED screens.

Contact us for more information about the system.

Technical Specification

Type:Indoor/Outdoor Mesh
LEDtype: SMD3in1,1R1G1B
Individual Mesh area (W x H): 1320 mm x 7975 mm
Individual Mesh area (m2): 10,53 m2
Pixel pitch: 55 mm
Unit resolution:24 x 145 dots
Physical density:330 pixels/m2
Panel conguration:1:16
Brightness:1000 nits
Weight:7,5 kg/m2
Viewing angle, Horizontal: 120 degrees
Viewing angle, Vertical: 120 degrees
Lifetime: >50,000 hours
Power supply: AC100V-240V/50-60Hz
Max power consumption:450 W/unit
Max power consumption (m2): 43 W/m2
Display gradations/colours: 12bit
Refresh rate:1000Hz
Input signals: Processor interface: AV, S-Video, VGA, CVBS, HDMI, DVI Windows 200/XP/Vista/Windows7
Temperature range (operational): -20oC – +40oC
Ingress protection: IP66 on pixels strings IP54 On controllers and power box
