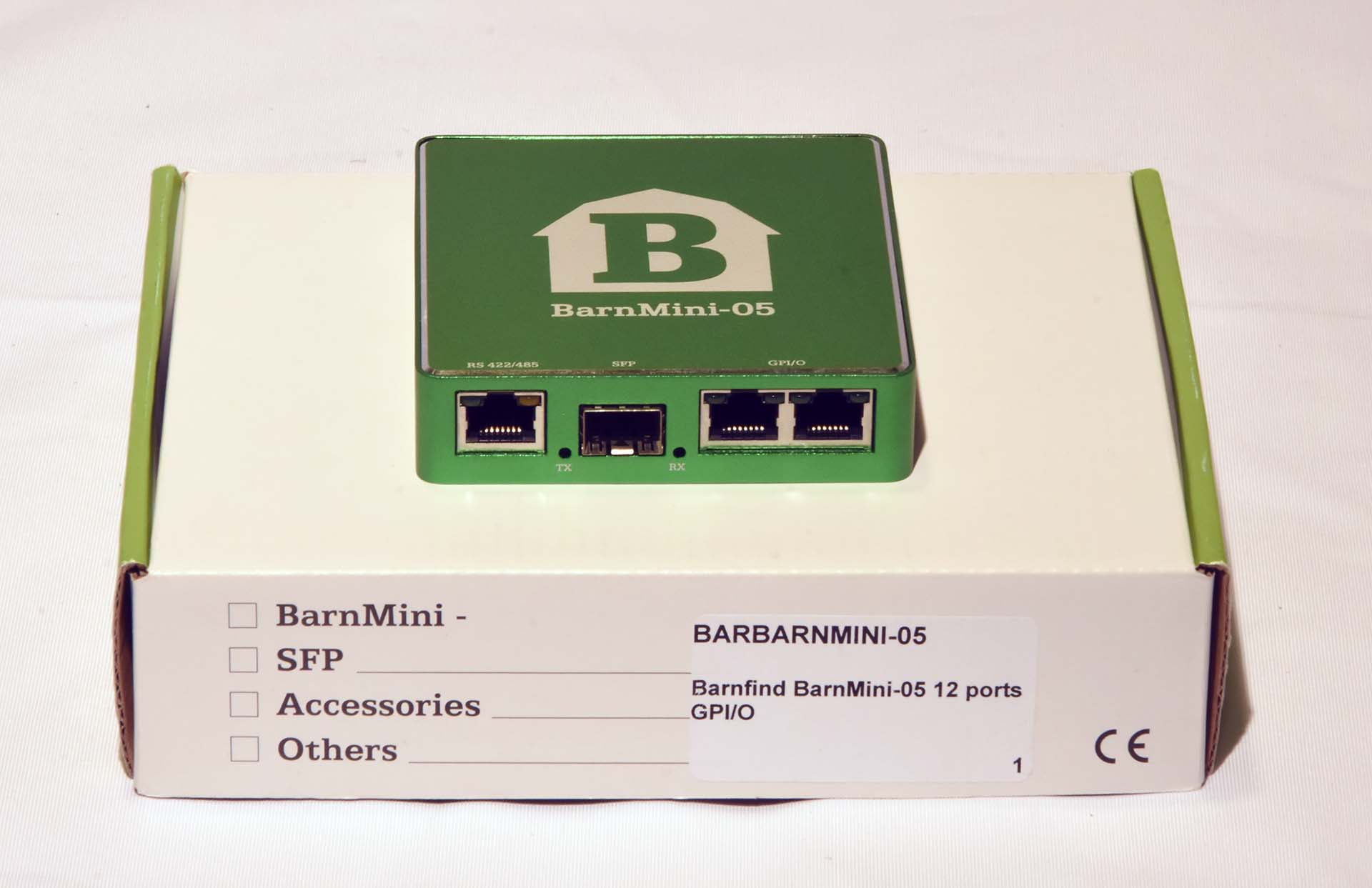

Barnfind BarnMini-05 GPIO converter

Barnfind BarnMini-05, 12 ports GPIO over ethernet / fiber, incl. PSU

Ask about this item

Original price was: EUR 485.Current price is: EUR 300. excl tax

Price is excluding VAT What's this?

1 Available


BarnMini-05 offers a compact way to convert an RS422/RS485 serial data, 4 x GPI and 4 x GPO to Ethernet. The unit can serve as an intelligent bridge between many third-party devices, for example transferring an RS422 signal or tally between two locations, or it can control an external optical changeover switch such as BarnMini-06 in a redundancy setup. Triggers are easily set, and the module works well in conjunction with any BarnOne frames. BarnStudio, Barnfind’s control software, can be used to configure and monitor BarnMini-05.

SKU: 11071 Category: Tag: Brand: BarnfindMPN: BarnMini-05EAN: 7333293110716Condition: UsedCondition Description: Demo unit, very little usageWarranty: 72 hoursLocation: Sweden


Technical Specifications

Serial port

RJ45 connector
selectable RS422 or RS485

GPIO ports

2x RJ45 connector with 2x GPI and 2x GPO per connector
4x GPI – optocoupled; common floating 5V reference; connect to 0V reference to trigger
4x GPO – Relays; max. 50V AC/DC; max 100mA

SFP port

1x SFP port (small formfactor pluggable) for transceivers, MSA compliant
Recommended SFP module: BTSFP-GBase-CU
100Mbit/s Ethernet (carried over SGMII)

Power supply

12-24V DC, power supply included

Physical size

92mm x 98mm x 22mm

Model name


Barnfind BarnMini-05 GPIO converter
