Specifications

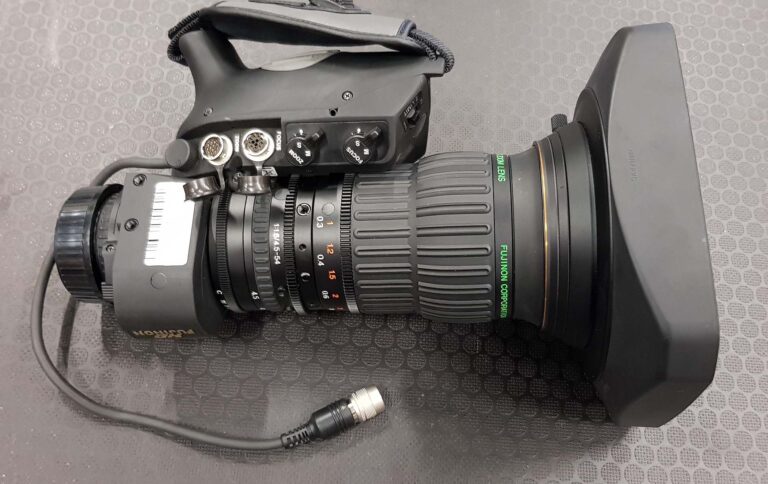

Model Name | ZA12x4.5BERM / BERD | |
---|---|---|
Focal length | 1x | 4.5-54mm |
2x | 9-108mm | |
Zoom ratio | 12x | |
Extender | 2x | |
Maximum relative aperture (F-no.) | 1 : 1.8 (4.5-41mm) / 1 : 2.4 (54mm) | |
Minimum object distance (M.O.D.) from front lens | 0.3m | |
Object dimensions at M.O.D. 16 : 9 Aspect ratio |
1x | 4.5mm 757 x 425mm 54mm 59 x 33mm |
2x | 9mm 373 x 210mm 108mm 31 x 17mm |
|
Angular field of view 16 : 9 Aspect ratio |
1x | 4.5mm 93°38′ x 61°50′ 54mm 10°09′ x 5°43′ |
2x | 9mm 56°06 x 33°20′ 108mm 5°05′ x 2°52′ |
|
Filter thread | M127 x 0.75 (Filter attaches to the lens hood.) | |
Size (φ x Length) | φ95 x 237.5mm | |
Mass (without lens hood) | 2.0kg (RM) / 2.07kg (RD) |
