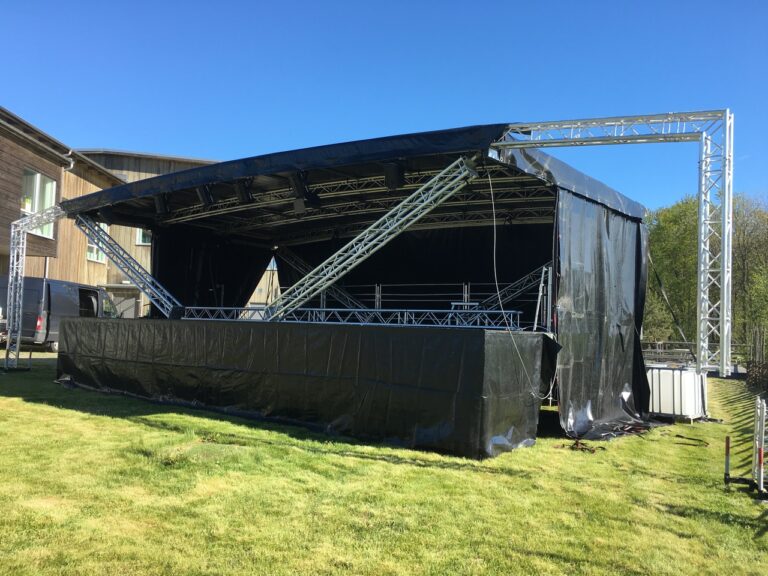

Alspaw Profiled L60 Mobile Stage
Alspaw Profiled L60 Mobile Stage from 2016
Ask about this item
EUR 38 000 excl tax
Price is excluding VAT What's this?
This item is sold
Share:

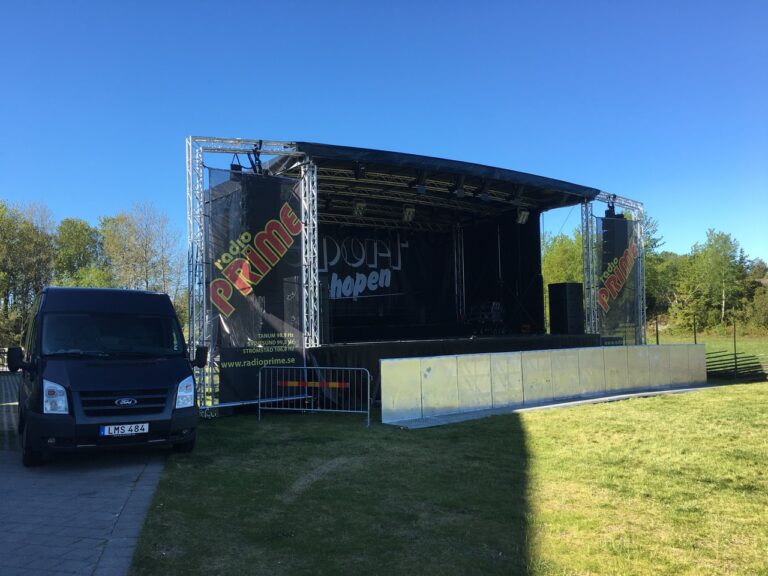

Profiled L60 mobile stage
ALSPAW have chosen to adhere to the highest and newest European Directives, specifications and standards in order to provide a safe and high quality product of product quality. All our products comply with the strictest international standards according to the latest standards of Eurocode 0, Eurocode 1, Eurocode 3 Eurocode 9. We think ahead updating all regulations and implementing certain provisions into our products. All accessories and additional elements should be transported separately on the truck.

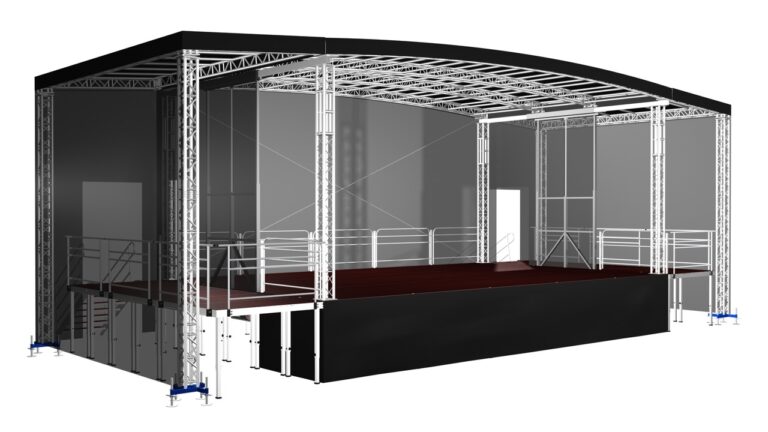

Dimensions after assembly
Transport dimensions
| Technical data | |
| Type of roof | profiled |
| Dimensions as a stage | 10,0 m x 6,0 m x 6,1 m (10,0 m x 6,0 m x 7,0 m – optional) |
| Dimensions as a trailer | 11,9 m x 2,46 m x 3,6 m |
| Way of lifting the roof | electric-hydraulic operated by remote control |
| Way of lifting the floor | electric-hydraulic operated by remote control |
| Permitted total weight | 3500 kg |
| Stage area | 60 m2 |
| Height of stage floor | 1,5 m |
| Stage floor | slip proof, weather proof |

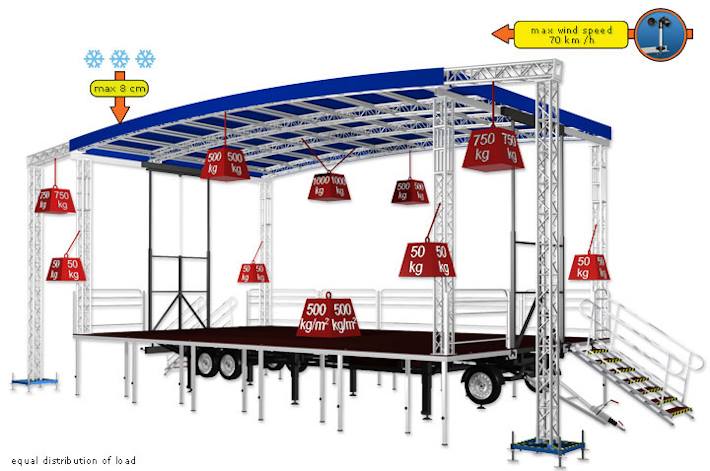

| Roof capacity | 400 kg – uniformly on each arch – total 1600 kg |
| Floor capacity | 3,5 kN/m2 (ok.350 kg/m2) |
| Quadrosystem pillars load capacity | 50 kg |
| Flying Towers load capacity | 500 kg (in the middle point) |
| Max. wind speed | windzone 1 – 3 excepting the 5 km wide coastal areas and the islands of the North Sea and the Baltic Sea:. max 17.8 m/s with the back and sides cover and max 30 m/s without covers |
| Max. tickness of snow on the roof | mobile stages should be used only in periods in which there is no snow, unless the snow is effectively removed, eg. by installing the appropriate heating devices |
| Canopy | PCV certified material (flame resistant) |
| Scrim | A203 (white or black) |
| Installation time | 60 min (2 people) |
