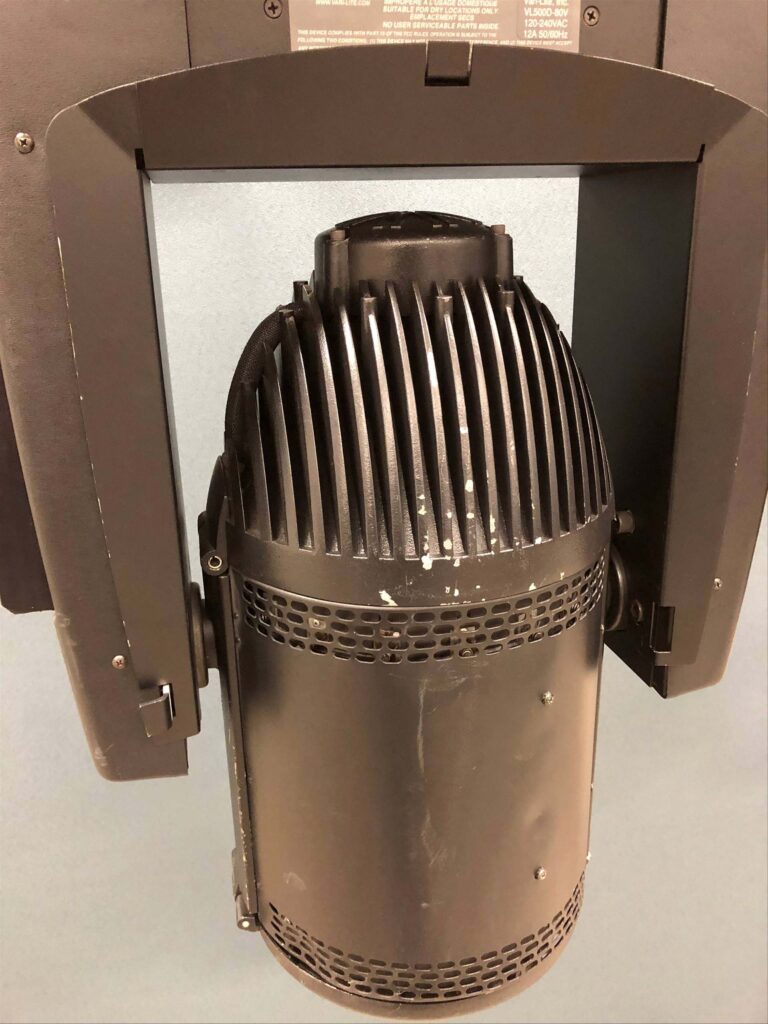

Vari-Lite VL500 80V Wash

The VL500 80v has three-colour changers holding 16 frames of standard dichroic media (magenta, blue, and amber), providing a full spectrum of colour cross-fades, with a wide range in the saturated colours.
For intensity control, the VL500 80v utilizes an internal dimmer supplying a dimming curve that matches the rest of your rig. To control the beam it has16 radially mounted diffuser filters. For additional beam control, the VL500 80v has the option of six interchangeable lenses, including clear, stipple , 8-row, 10-row, 12-row, and Buxom.

Lamp: 80v/1200w Tungsten Halogen
Colour temperature: 3200k
Output: 4520-7180 Lumens Depending on lens installed
Movement: Pan: 540º Tilt: 270º
Colour: A radial colour changing mechanism features independent magenta, blue, and amber colour control.
Prism/Iris/Beam effects: A selection of six easily interchangeable front lenses work with the internal diffusing mechanism to provide a variety of beam sizes and shapes.
Dimming/Shutter:Internal 80v Dimmer
Power: Input: 100 – 240V 50/60Hz
Weight: 24.1kg (53 lbs)
Measurement & Size: Max dimensions: Height: 675mm (26.6”) Width: 467mm (18.4”) Length: 452mm (17.8”)
IP rating: IP20
Control: DMX512 5pin xlr
DMX Channels & Channel Map:

1: Intensity
2: Pan Coarse
3: Pan Fine
4: Tilt Coarse
5: Tilt Fine
6: Cyan
7: Yellow
8: Magenta
9: Diffuser
10: Focus Timing
11: Colour Timing
12: Intesity Timing
13: Control

Control Channel:

In each case set the control channel to the value for the required action hold the value for 3 seconds then set the channel to zero (0) in a zero count or snap. Any values detected for less than 3 seconds prior to zero will invalidate the command.
