STM B112 Bass Module
Injection-moulded bass cabinet featuring a Neodymium high excursion 3000W 12″ bass driver with 4″ voice coil. It has the same format – dimensions, weight, gravity centre – as the M46. The hybrid horn-loaded design maximizes the efficiency of the driver, delivering 6dB more than a standard front-loaded driver in this frequency range.

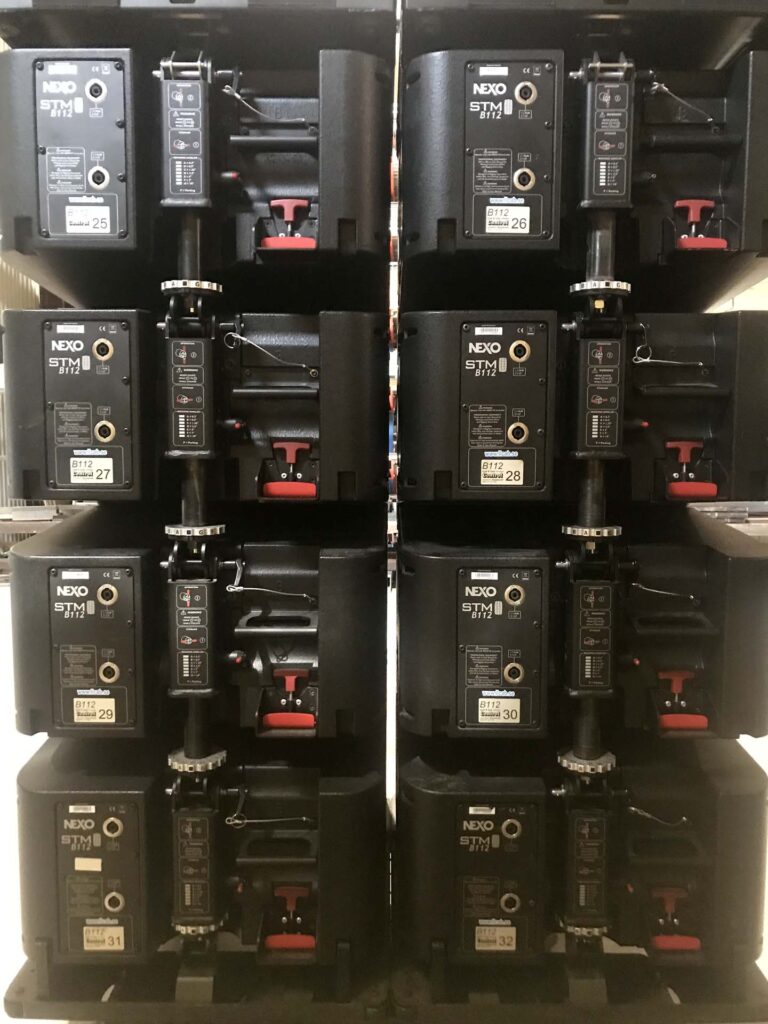

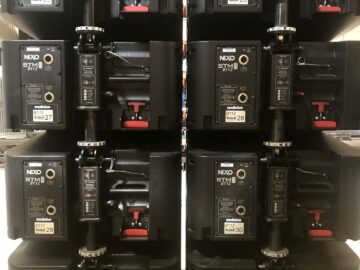

B112 features innovative PistonRigTM and REDLockTM rigging, enabling any size of system to be flown safely by one person. REDLockTM handle locks front rigging points from rear of cabinet. All adjustments made from one position at rear of cluster.
Key Features
1 x 3000W +/- 3cm excursion 12 inch LF Driver
141dB peak SPL
Frequency response: 63Hz-200Hz
H350mm/W575mm/D715mm
59Kg/130lb
Specifications
Frequency Response [a] 63Hz – 200Hz ±3dB
Usable Range @-6dB [a] 55Hz – 250Hz
Sensitivity 1W @ 1m [b] 107dB SPL Nominal
Nominal Peak SPL @ 1m [b] 141dB Peak
Nominal Impedance 16Ω (12 Ω min)
Amplified Controller NXAMP4x4 – 3xSTM B112 in parallel on 2 NXAMP4x4 bridged channels – 8000W/4Ω
Features
Components LF: 1 x 12” (30cm) 3000W high excursion Neodymium 16 Ohms driver
Height x Width x Depth 350 x 575 x 715 mm – 13.78” x 22.64” x 28.15”
Weight : Net 59kg – 130lbs
Connectors 2 x NLT4-MDV Speakon 4 poles (in/out)
Construction PU Composite Low Density – Polyurethane water based black coating
Handles 3 handles (2 sides and 1 rear)

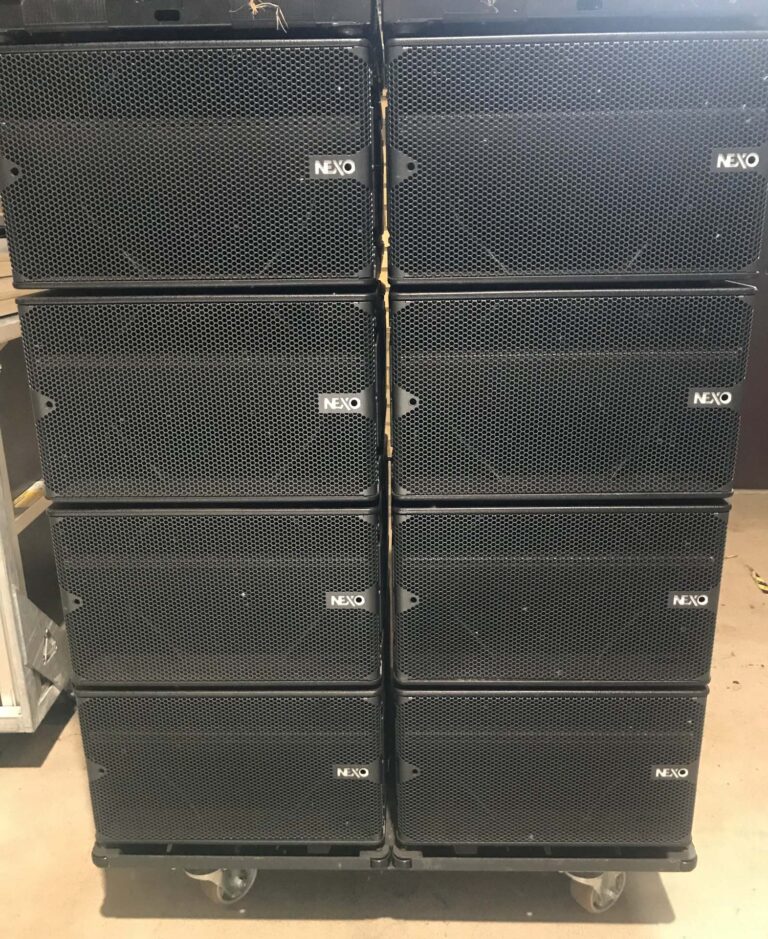

Front Perforated Dark Grey Metal Grille
Rigging Integral 3 points flying system. Inter cabinet angle adjustments from 0.2° to 10° in logarithmic steps
