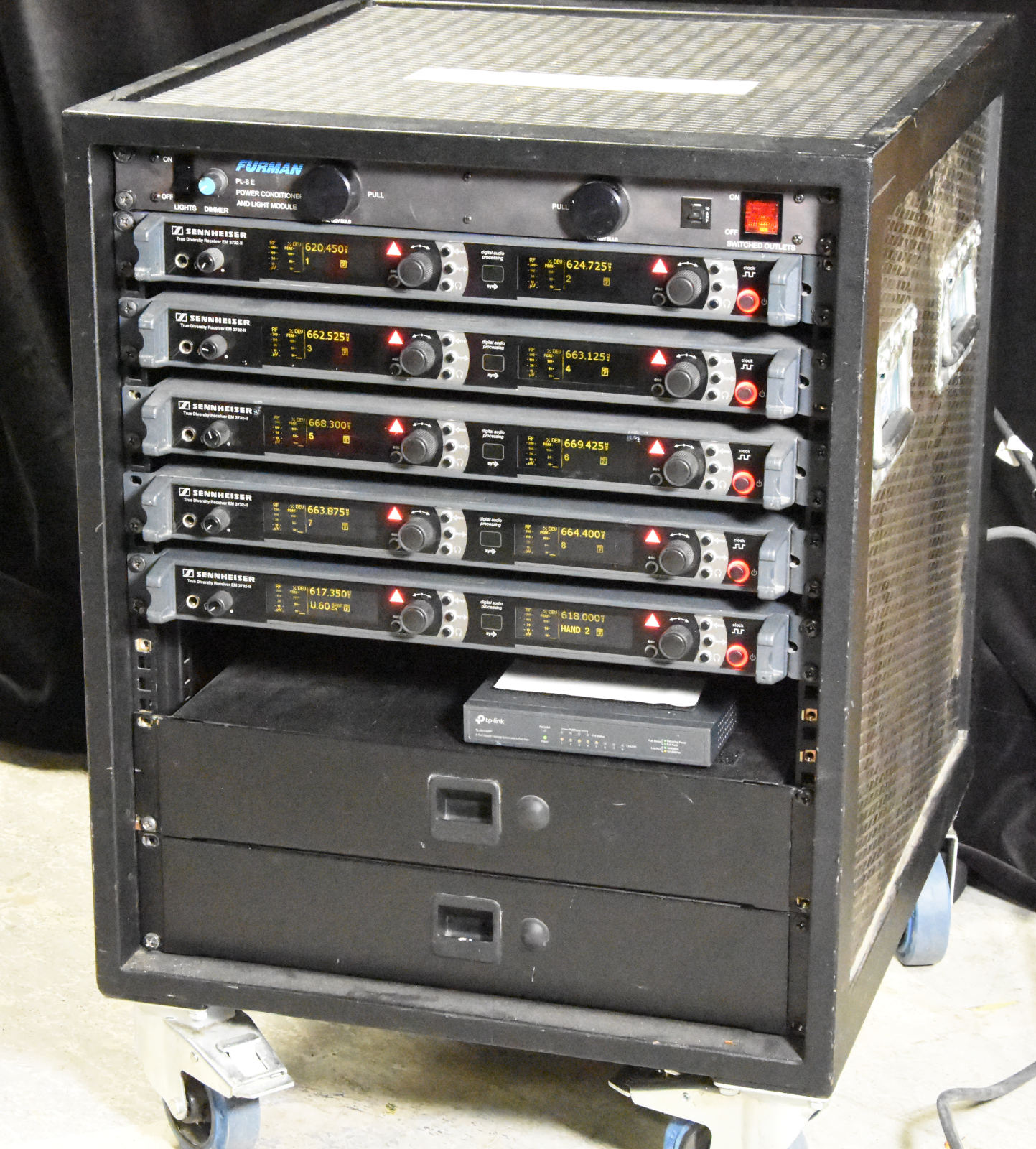

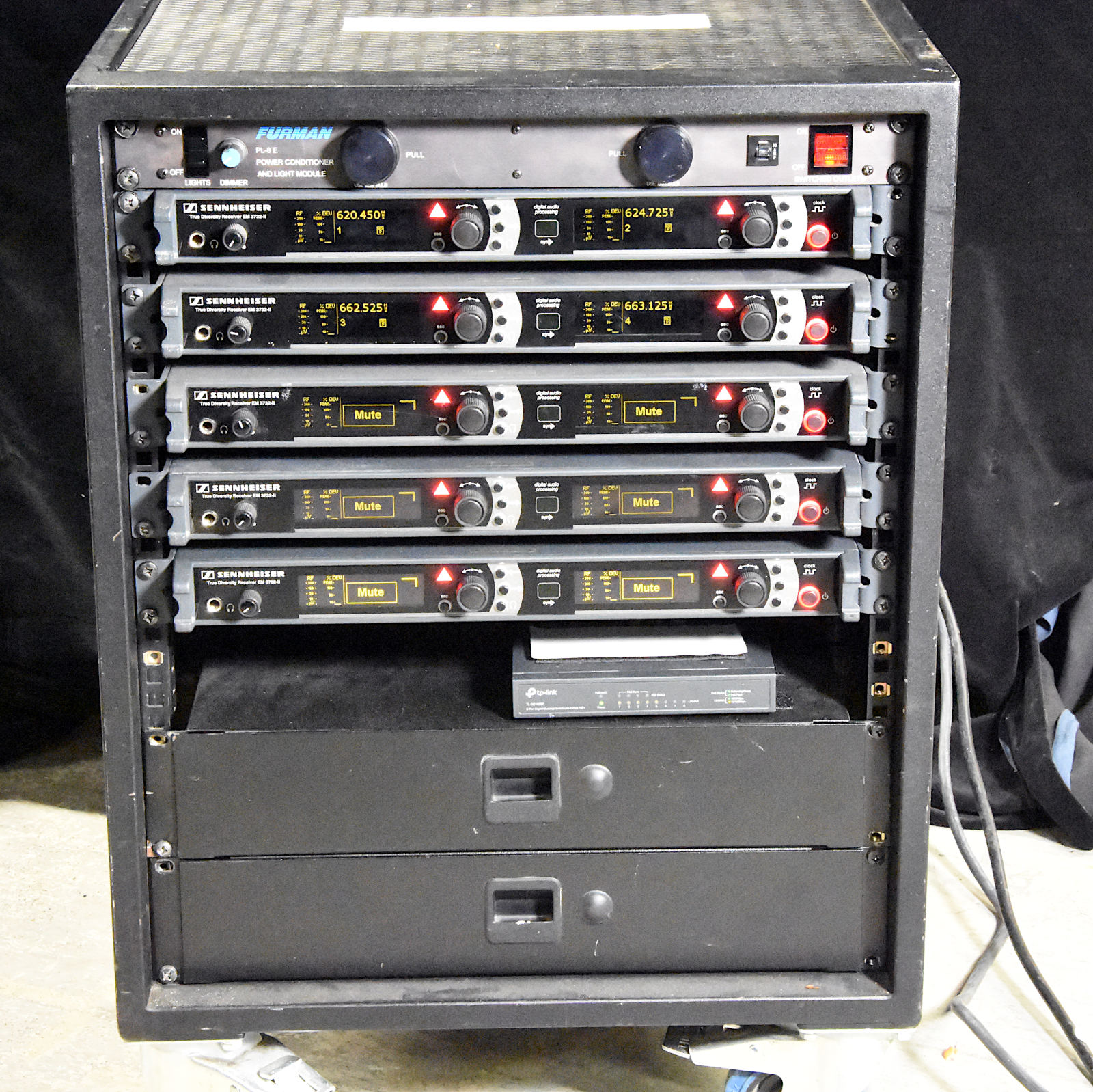

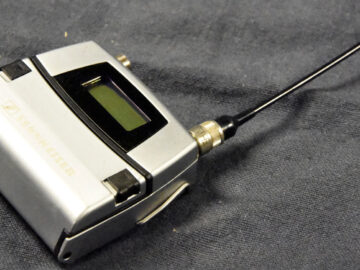

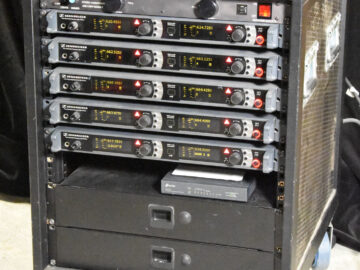

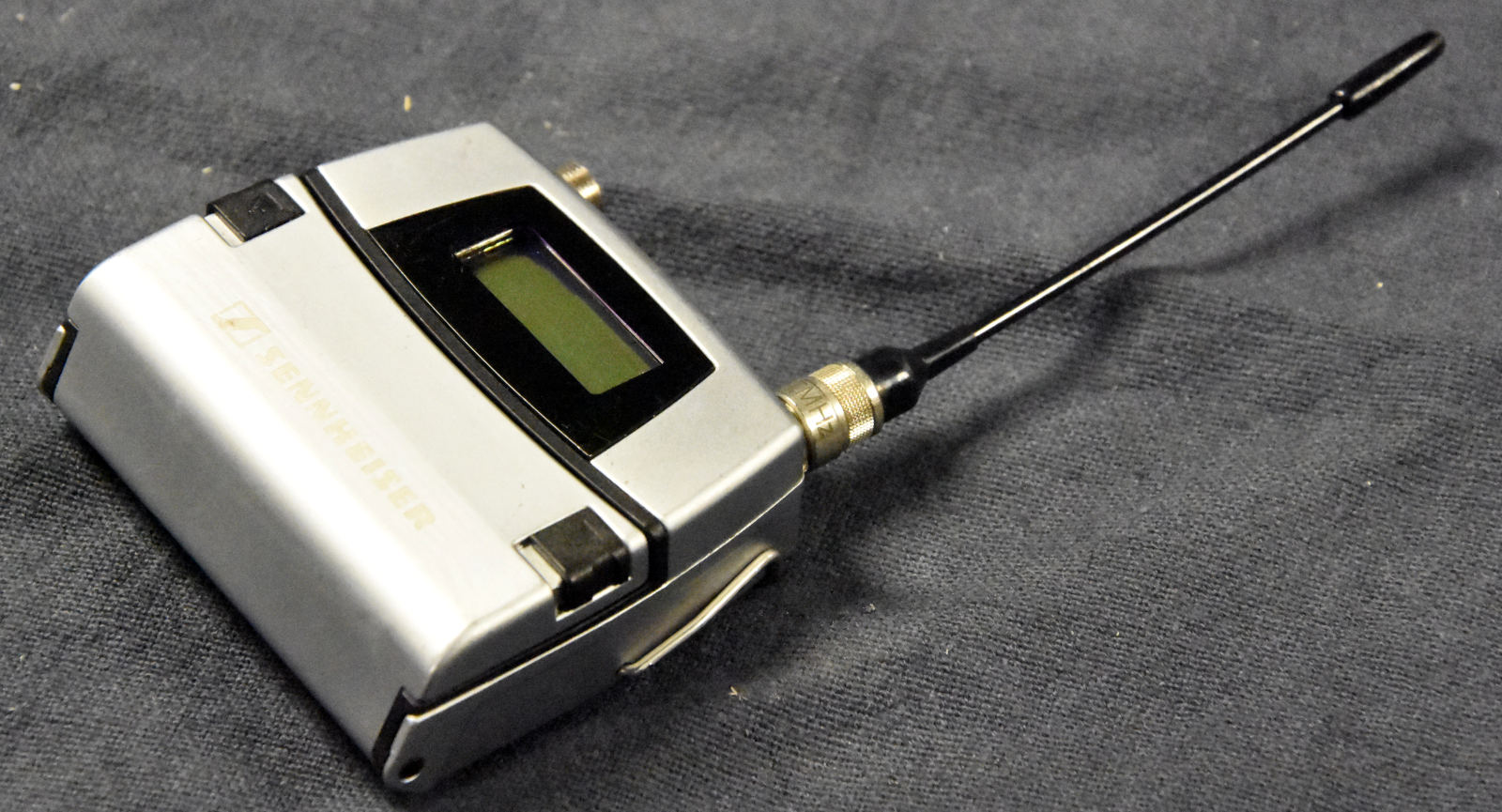

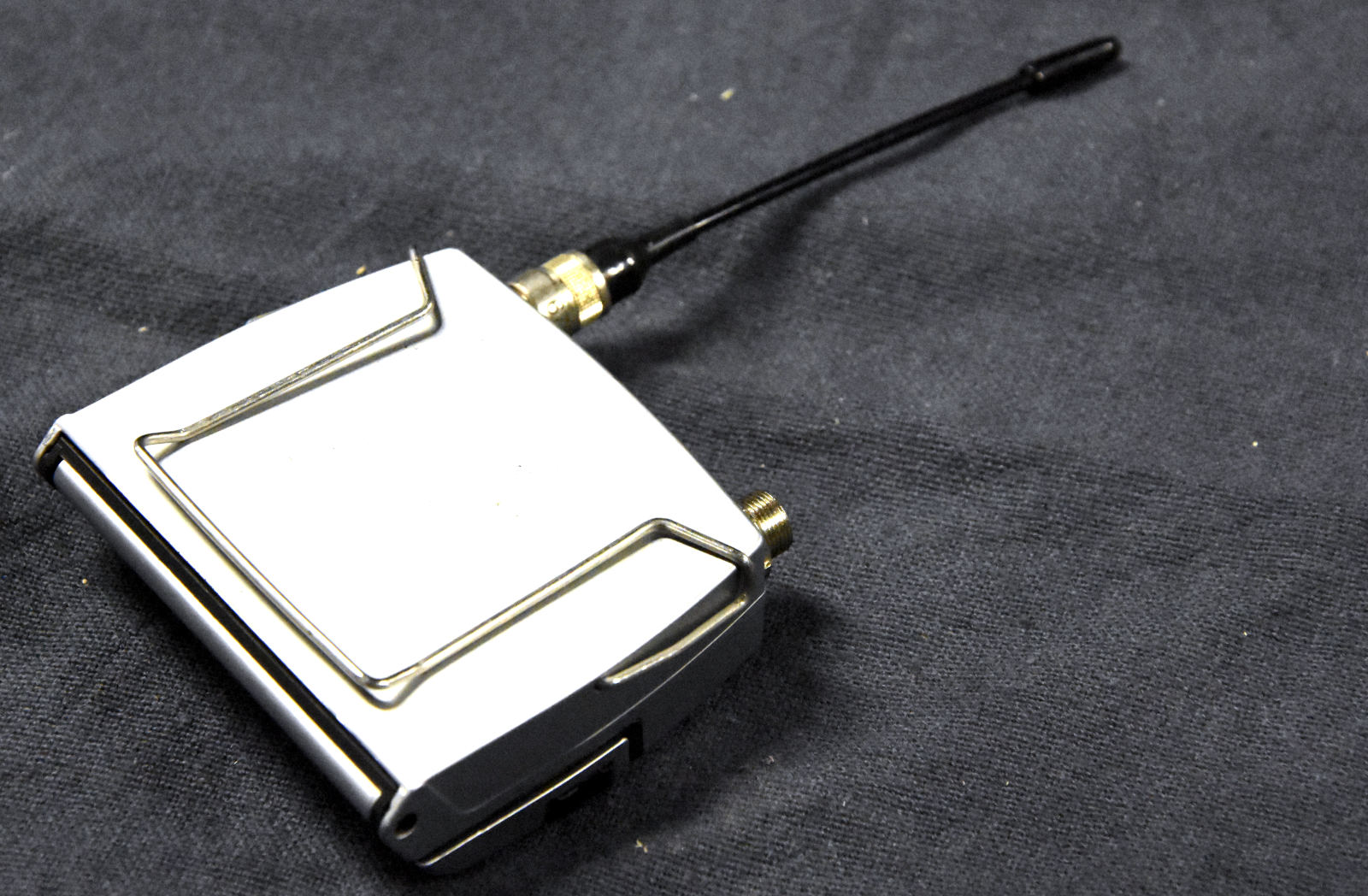

Sennheiser EM 3732-II System Package

Features :

• Receiver principle : True diversity
• Frequency range L : 614 – 798MHz
• Switching bandwidth : Up to 184MHz
• Receiving frequencies : 6 frequency banks, each with up to 59 factory-preset channels, 1 frequency bank with up to 60 freely tunable channels (in 5 kHz steps)
• Frequency stability : ≤ ±2.5 ppm
• Sensitivity : typ. 1.5 μV for 52 dBA rms S/N (with HDP, peak deviation) 15 μV for 115 dBA rms S/N
• Adjacent channel rejection/spacing type : 75 dB / ±400 kHz, 80 dB / ±800 kHz
• Intermodulation attenuation : ≥ 80 dB
• Blocking : ≥ 80 dB
• Squelch : 13 steps (0 … 30 µV)
• Antenna inputs : 2 BNC sockets (50 Ω)
• Daisy chain outputs : 2 BNC sockets (50 Ω)
• Gain : 0.5 dB ±0.5 dB (ref. to antenna inputs)
