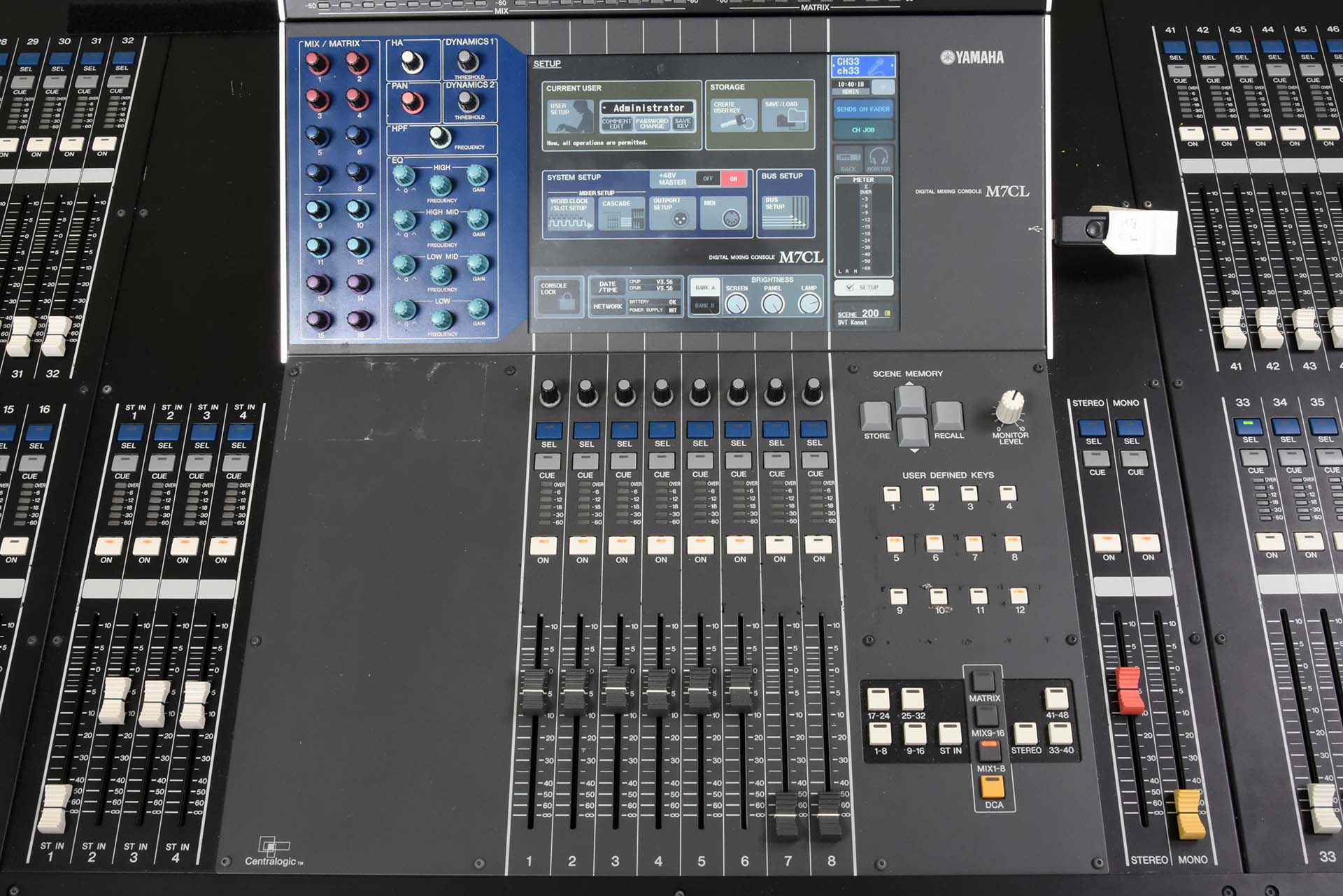

The M7CL is familiar and comfortable to use, offering a level of convenience that overturns the preconception that “digital is difficult”. A surprising range of functions that you would normally have to supply in the form of peripheral equipment is built in, and all of this is provided in a space that is dramatically less than an analog console of similar scope.
The M7CL is the ideal digital mixing console for medium size live sound applications that have previously been handled by analog gear.
M7CL-48ES Digital Mixing Console Discontinued
Specifically designed for use with SB168-ES EtherSound stage boxes, the M7CL-48ES replaces the 48 internal head amps of the M7CL-48 with two EtherSound ports that provide plug-and-play connection to up to three SB168-ES units.
Two EtherSound ports for easy auto-configured connection to SB168-ES(Optional) stage boxes in daisychain or ring configuration.
A third port (EtherSound) is provided for permanent connection to a computer.
48 mono and 4 stereo inputs (a total of 56 mixing channels), 16 mix buses, LCR bus, 8 matrix channels, and 8 DCAs.
8 assignable omni inputs and outputs, and 3 Mini-YGDAI card slots.
Virtual effect and EQ rack: up to 4 simultaneous multi-effect processors; up to 8 simultaneous 31-band graphic EQs.
Centralogic interface: central, logical, and intuitive.
Dual power modes: use the built in power supply, or add an external PW800W power supply unit for failsafe dual-supply operation.
