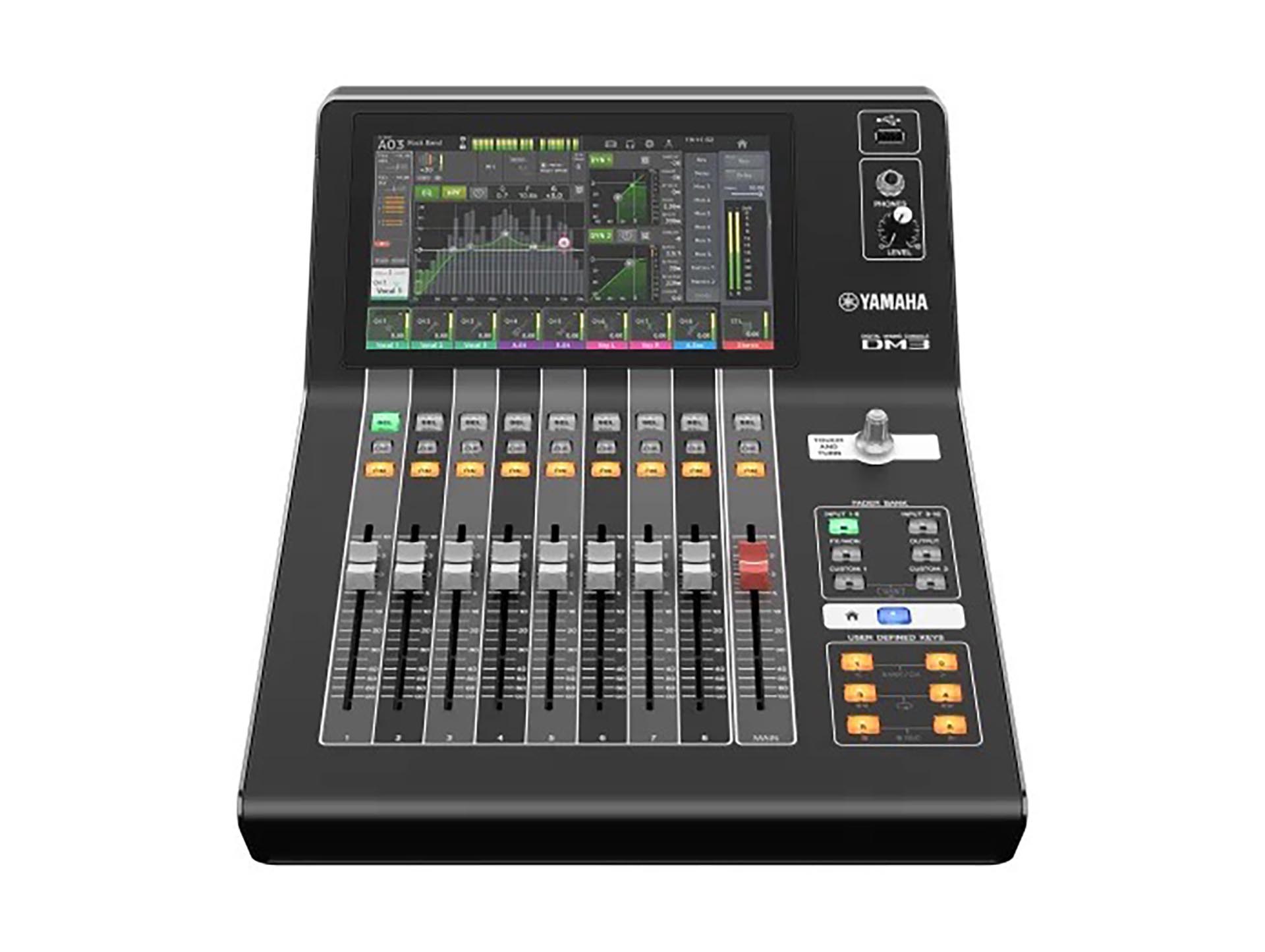

Yamaha DM3S New – Demo Unit

Input Channels: 16 Mono, 1 Stereo, 2 FX Return
Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Input to Matrix supported)

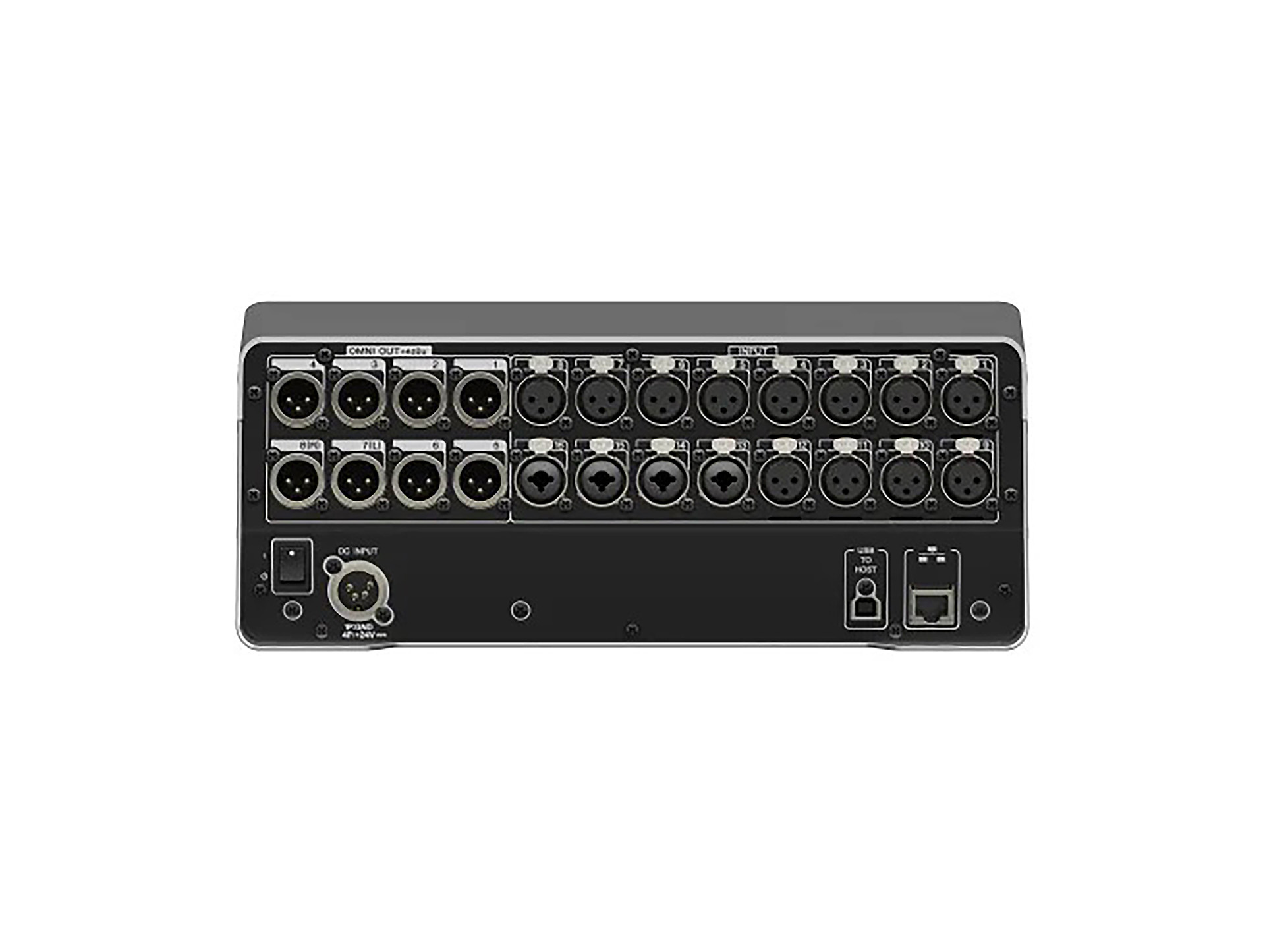

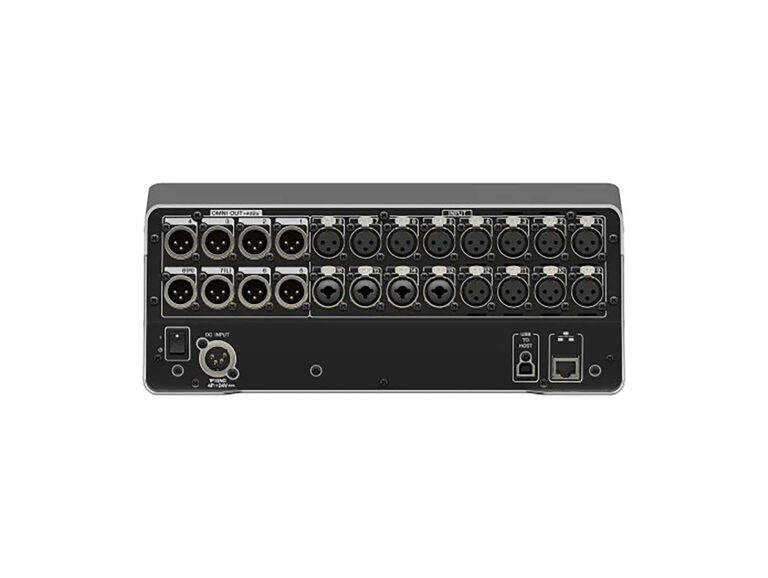

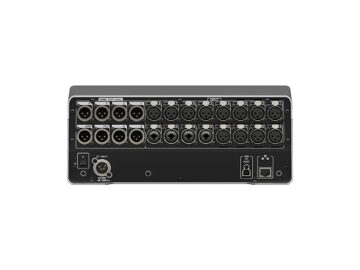

Analog In: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo)
Analog Out: 8 (XLR)
Ethernet: 1 (RJ-45)
USB to Host: 1 (USB Type-B)
USB to Device: 1 (USB Type-A)
Phones: 1 (TRS Phones)
DC In: 1 (XLR 4-Pin)
User Interface:
9-inch multi-touch screen
9 x 100 mm Motorized fader
1 x Rotary Encoder (Touch and Turn)
Recording and Playback:
PC (via USB to Host):
Recording: 18 track
Playback: 18 track
USB Storage Device:
Recording: 2 track
Playback: 2 track
Sampling Rate: 96 kHz/48 kHz
Signal Delay: Less than 1.3 ms, (CH INPUT to OMNI OUT, Sample rate @ 96 kHz)
Total Harmonic Distortion: Less than 0.01% 20 Hz – 20 kHz @ +4 dBu into 10 kΩ, INPUT to OMNI OUT, Input Gain at Mininmum
Equivalent Input Noise: -126 dBu typ., Input Gain at Max.
Residual Output Noise: -84 dBu, ST main off
Dynamic Range: 110 dB typ., DA Converter, 106 dB typ., INPUT to OMNI OUT, Input Gain at Minimum
Crosstalk: -100 dB, adjacent INPUT/OMNI OUT channels, Input Gain at Minimum @ 1 kHz
Power Requirements: DC 24 V, 2.5 A, PA-L500 (100 V – 240 V, 50/60 Hz)
Power Consumption: 43 W
Temperature Range:
Operating Temperature Range: 0°C to 40°C
Storage Temperature Range: -20°C to 60°C
Dimensions (W x H x D): 320 mm x 455 mm x 140 mm
Weight: 6.5 kg
