Allen & Heath dLive S3000 System Package

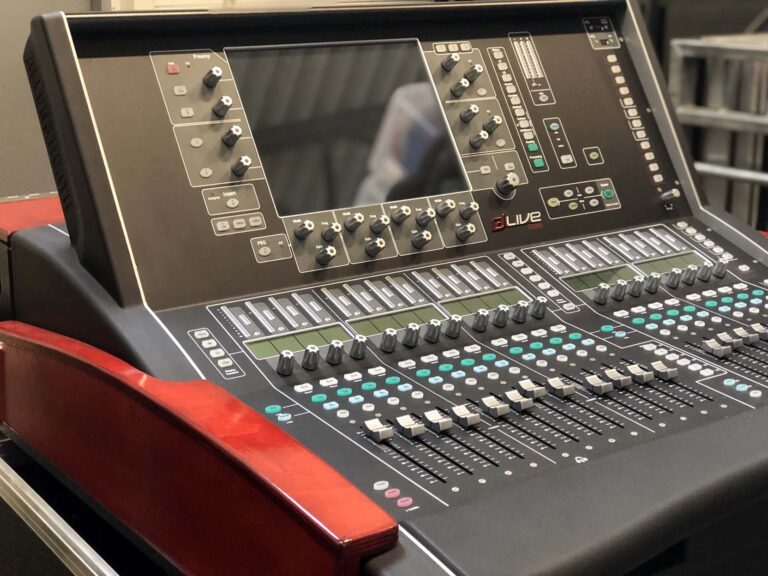

The S3000 is a small-footprint yet powerful control Surface for the dLive MixRack, with the addition of built-in audio I/O and audio networking ports. It features 20 faders over 6 layers, a 12″ capacitive touchscreen and the innovative Harmony UI for the fastest workflow in the industry.

20 faders
Fully assignable layout – 120 fader strips
Harmony UI integrates screen and wrap-around controls
Single 12” capacitive touchscreen
Gesture control – pinch, swipe, drag ‘n drop
Dedicated multi-mode EQ view
Configurable widget areas for Scenes, meters, FX and more
3 pages of 6 assignable rotaries
26 assignable SoftKeys
Engineer’s Wedge and IEM fader strips
Comprehensive multipoint metering
Daylight visibility

USB stereo recording and playback
8 XLR mic/line in, 8 XLR line out
2 digital st AES3 in, 3 digital st AES3 out
Connection hub
Dual redundant GigaACE gigabit link to MixRack
1x redundant DX link for I/O expansion
2x I/O Ports – 128 ch 96 kHz each
2x Network ports
Wordclock BNC I/O
Video output
Dual redundant, hot swappable power supply
3 Year Warranty
