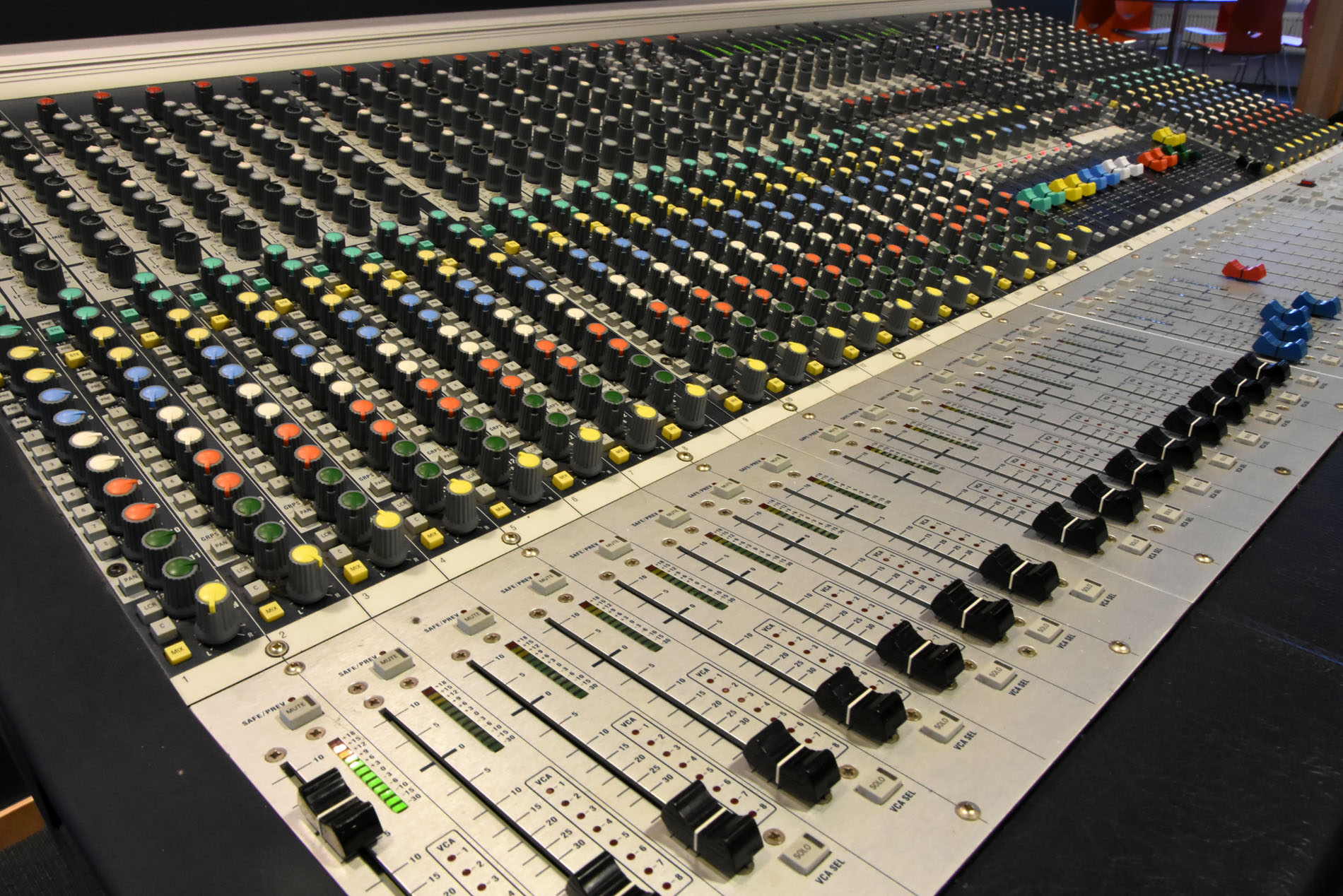

Soundcraft MH3-24 Mixing Console

Ideally suited for both Front-of-house and Monitor use, the Soundcraft MH3 provides sound contractors and venues with the critical commercial advantage of complete console flexibility. All it takes is the touch of a button to place either Groups or Aux Masters onto faders, delivering intuitive and uncompromised operation in either application. The MH3 is available in five frame sizes with legendary Soundcraft sound quality delivered via a new high-headroom mic amp, classic British EQ and rigorous circuit design.

What’s more, the MH3 is a true modular console. Channels can be quickly removed and replaced in blocks of eight, making it easy to configure the MH3 to meet the user’s precise requirements and ensuring the robust reliability a life on the road necessitates. A professional, modular, dual-purpose live sound console at a truly affordable price? Welcome to the Soundcraft MH3.
Features

Versatile design, allowing FOH, Monitors, or Monitors from FOH configurations
Semi-modular in blocks of 8 for flexible layouts and easy serviceability
Frame sizes 24 mono/4 stereo, 32 mono/4 stereo, 40 mono/4 stereo, 48 mono/4 stereo, 56 mono/4 stereo
Flexible Auxiliary Bus structure with 2 stereo sends for in-ear monitoring
8 group busses and 12 aux busses in FOH mode
12 monitor busses (12 mono, or 8 mono + 2 stereo) in Monitor mode
Swap mode allows fader control of Aux outputs in Monitor mode
Integral 12×4 matrix, can be expanded to 12×8 with optional matrix module
3-band EQ on FX Returns 1-8, switchable to Group or Aux outputs
New Mic Amp design with high headroom and outstanding CMRR
New EQ design with focused response
LCR panning on inputs
8 VCA groups and 8 Mute groups with snapshot automation and MIDI control
Integrated control of BSS Audio Varicurve™ and dbx DriveRack™
Integral LED bargraph metering for all inputs and outputs
Optional VU output meterbridge
