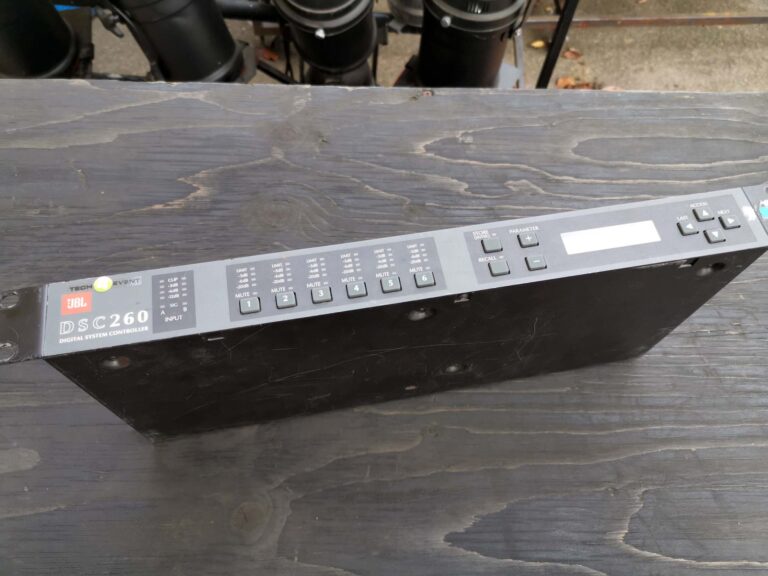

JBL DSC260 Controller

The DSC260 provides two inputs and six outputs that can be assigned to either or both inputs. Typical applications include stereo three way systems. The unique flexibility of the DSC260 allows each output to be tailored to the exact requirements. This allows mono systems with up to six bands or a combination of mono or stereo crossovers and delays. The user can select the slope and type of crossover as well as frequency, polarity, level and limiter thresholds. In addition, up to 30 bands of EQ can be assigned to inputs or outputs eliminating the need for additional outboard equipment. Signal delays can be assigned to any input or output independently and can be linked to other channels for stereo or delay tower operation. To assure optimum acoustic performance, careful consideration was given to the overall circuit design including high quality 20 bit A/D and D/A converters as well as minimal analog circuitry. The DSC260 achieves a very low noise floor, smooth amplitude response, and maximum dynamic range.

DSC260 Specifications:

Frequency Response: 20Hz – 20kHz <+-0.5dB Power Requirement: 100-240 Volts 50/60Hz +-10% Configuration: Stereo 2 and 3 way, Mono 4, 5 and 6 way Inputs (Balanced): 2 channels, Max. level +20dBu, 10k Ohms impedance, Electronically Balanced, XLR connectors, pin 2+ Outputs (Balanced): 6 channels, individually configurable, Max level +10dBu into 600 Ohms, Electronically Balanced, XLR connectors, pin 2+ Front Panel Controls: Softkeys for programming functions. Mute on each output and LED level meters on each input and outputs with clip, mute and limit Display: 2 x 16 Character Backlit LCD Crossover: Butterworth or Linkwitz-Riley with slopes of 12, 18, 24 or 48dB per octave Assignable Equalization: An array of between 8 and 30 bands of parametric equalizer can be assigned to the inputs and outputs. Dependant upon slopes of crossovers used. Dynamic Range: >100 dB
Total Harmonic Distortion: <0.05%, 20Hz-20kHz, @+10dBu Limiters: Mid Band Limiters with variable threshold of -10 to +10dBu Sample Rate: 46.875kHz Storage and Recall: Pre programmed for JBL Systems with 60 user defined presets and Remote Midi Recall Dimensions: 44.4 x 483 x 203 HxWxD (1.75" x 19" x 8") Weight: 2.8 kg (6.2 lbs)
