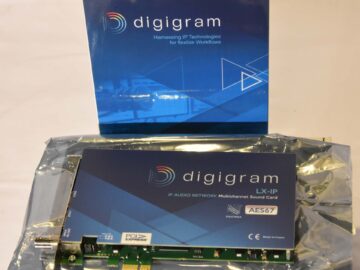

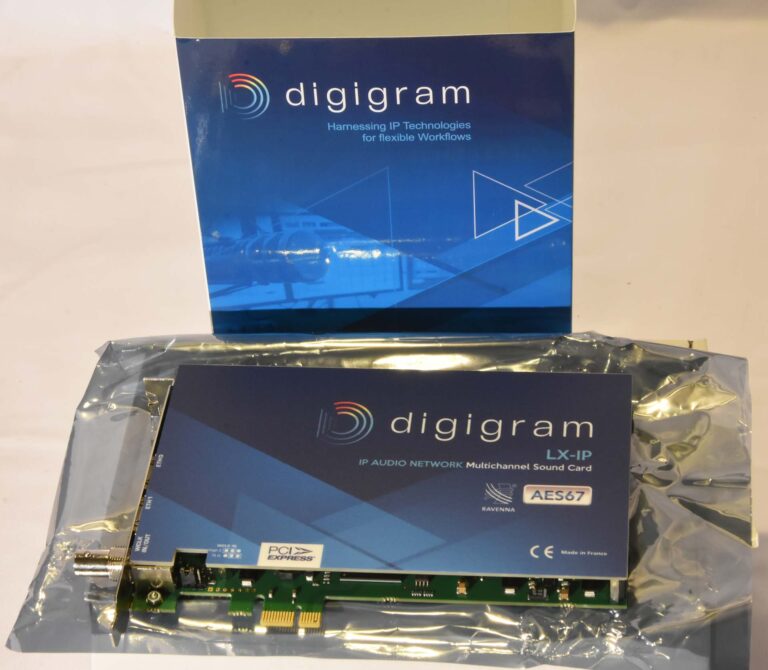

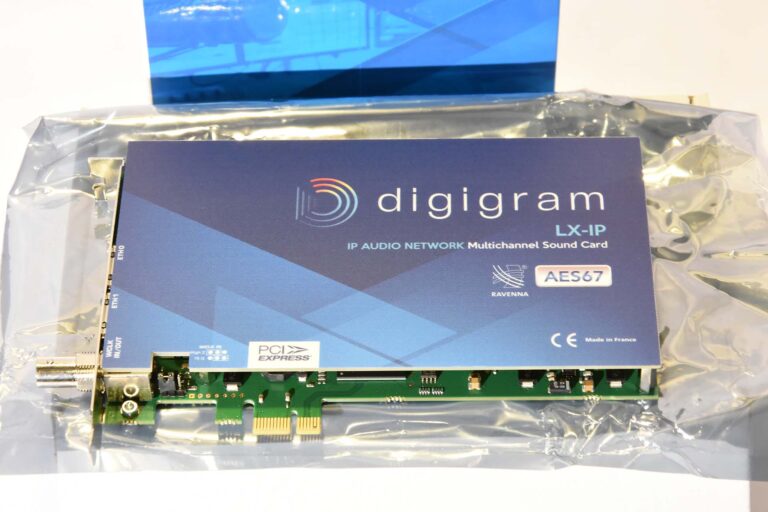

Digigram LX-IP sound card

LX-IP Synchronous AoIP & MADI Multichannel Sound Card

Ask about this item

 1 385 excl tax

Price is excluding VAT What's this?


This item is sold


Description

Currently not available

Key Workflow: Bridges professional audio software applications to the ultra-low latency, phase-accurate and high precision clock management of AES67 and RAVENNA AoIP networks

LX-IP provides the perfect gateway from mission critical applications to RAVENNA and AES67 AoIP networks. Its 64 channels, 0.5 ms latency and phase accuracy match all requirements for high density, ultra-low latency on-air or production studio workflows. Hardware-based architecture maintains performance regardless of the computational load of other applications running on the host system.

LX-IP with MADI optional interface provides a seamless migration path from legacy digital audio to AoIP and provides all MADI features described below.
At a glance


SKU: 11074 Category: Tags: , Brand: DigigramMPN: LX-IPEAN: 7333293110747Condition: UsedCondition Description: Demo unit, very little usageWarranty: 72 hoursLocation: Sweden

Share:

The LX-IP sound cards provide:

High channel count, ultra-low latency and phase-accurate audio distribution on synchronous AoIP networks
Phase-accurate clock synchronization between digital audio and AoIP networks
Interoperability with traditional digital audio
Performance & stability independent of PC applications
Mission critical reliability
Play/record 64 audio channels between a DAW (Digital Audio Workstation) or automation application and AES67 or RAVENNA synchronous AoIP network
Play/record 64 channels between a DAW or automation application and digital audio MADI equipment
Provides zero-latency routing on-board between 2*64 RAVENNA/AES67 channels, 64 DAW channels and (option) 64 MADI channels
Provides PTP Grand Master clock to synchronous AES67 or RAVENNA AoIP network. This Grand Master can be slaved to WordClock or MADI inputs
Synchronises RAVENNA/AES67 AoIP streams on external PTP clock. The MADI output and WordClock clocks can be slaved to the external PTP clock

Key features

64/64 Record/Play channels on PCIe bus
64/64 AES67/RAVENNA I/O channels on each of the two Gigabit Ethernet interfaces
64/64 I/O MADI (AES10) optical channels (option)
Ultra-low sub-millisecond round trip latency
Fully compliant with AES67 interoperability recommendations, including Unicast SIP support
Packet size from 128 down to 1 audio sample per RAVENNA packet
Local clock eligible as PTP Grand Master
Zero delay embedded routing matrix for AoIP / MADI / PC channels
Performance maintained regardless of the computational load of applications running on the host system
Fully configurable through Web user interface and EMBER+ protocol

Digigram LX IP
