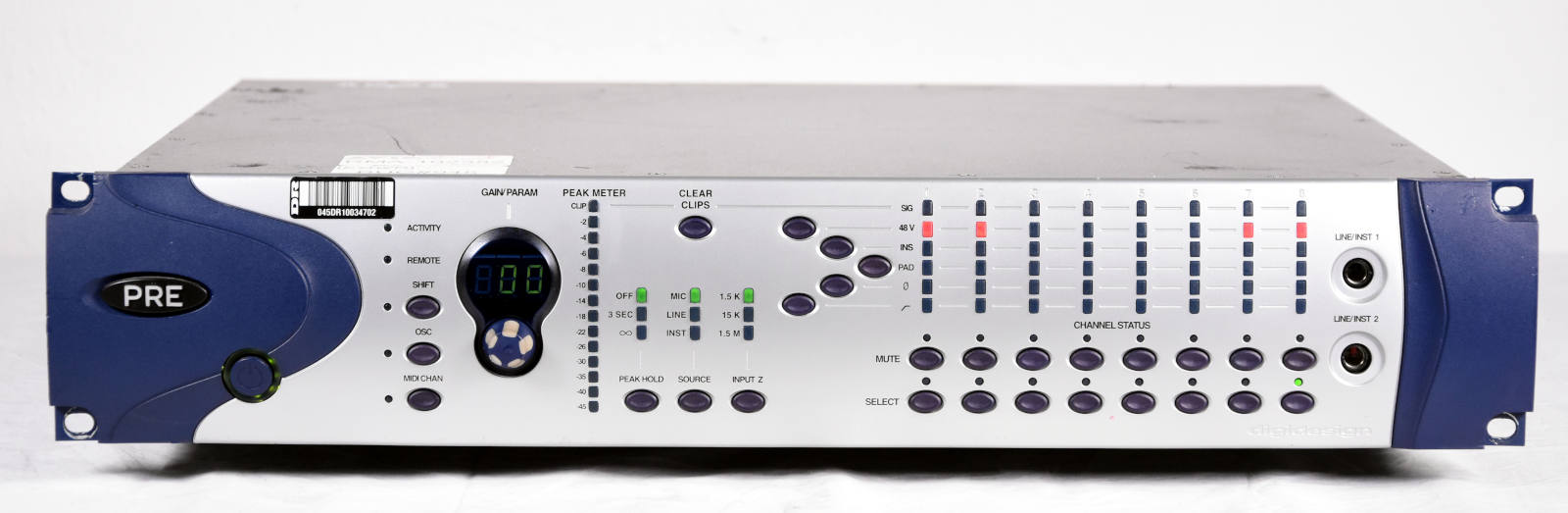

Digidesign PRE

• Eight high-performance, discrete matched
transistor hybrid microphone preamplifica-
tion circuits
• Remote control with qualified Pro Tools TDM
systems and Digidesign control surfaces (such
as D-Control® , D-Command®, C|24TM, Com-
mand|8®, Control|24TM, and ProControlTM)
• Industry-standard DB-25 output connectors
for easy connection to Pro Tools audio inter-
faces or any other recording or mixing me-
dium
• Each channel features:
• Support for microphone (XLR), line level
inputs (1/4-inch), or direct instrument
(1/4-inch)
• Selectable impedance settings for Mic input
• Input gain variable from 0 dB to +69 dB, in
approximately 3 dB steps, with an optional
–18 dB pad
• +48V power for condenser microphones
• Balanced Insert points (Send and Return),
for easy integration of outboard gear (such
as compressors or EQs)
• Phase invert
• 85 Hz High-Pass Filter
• Up to nine PREs supported through software
for up to 72 channels of remote-controlled
preamplification
• All features available in Stand-alone mode
